Square Flat Solid Element
Açıklama
Available: 125 – 500W
Size: 122 x 122 x 26mm
Average weight: 105g
Iron-chrome aluminium resistance wire
Heater Voltage: 230V standard
Other Variations: voltages, wattages, lead length and terminations available on request
Useful wavelength range: 2-10 microns
Average Operating Life: to 20,000 hrs depending on conditions
Click here for details of UL Approval
Recommended radiation distance from heater is 100mm to 200mm
Minimum recommended spacing between elements: 5mm
Supplied with 150mm ceramic beaded power leads
Technical information
| Available Wattage | 250 | 400 | 500 | 600 |
|---|---|---|---|---|
| Mean surface temp (°C) | 251 | 480 | 515 | 596 |
| Max power density (kW/m2) | 15.5 | 24.8 | 31 | 37.2 |
| Radiant Watt density at 100mm (W/cm2) | 0.23 | 0.39 | 0.71 |

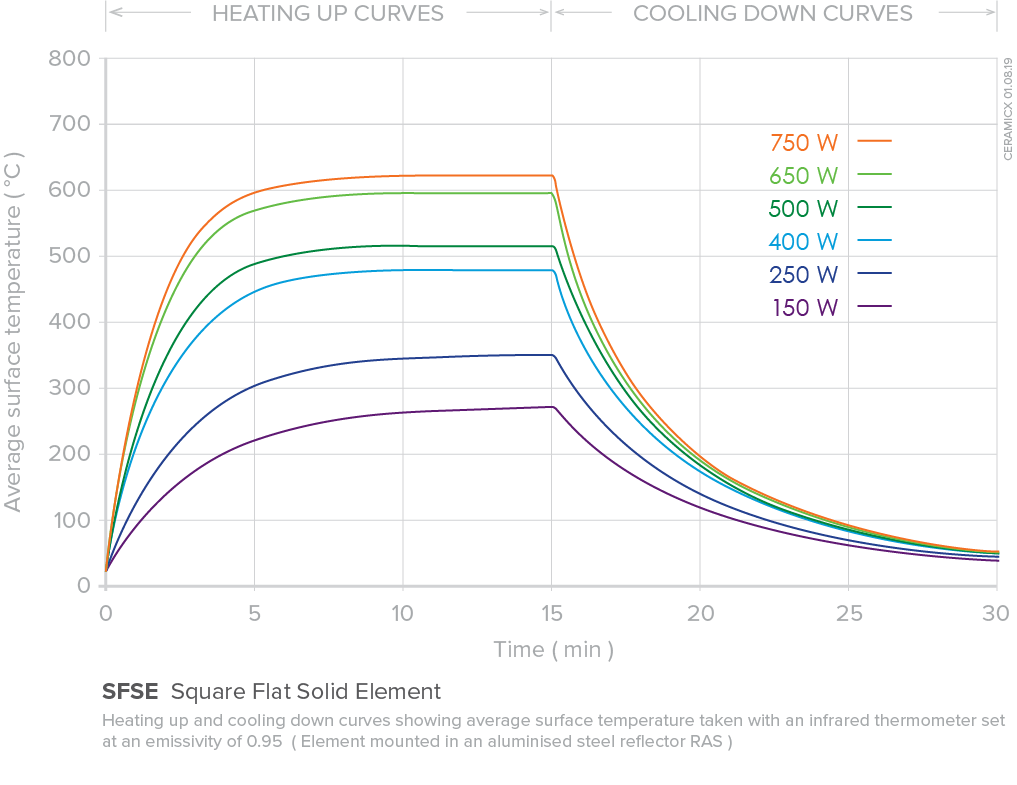

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)

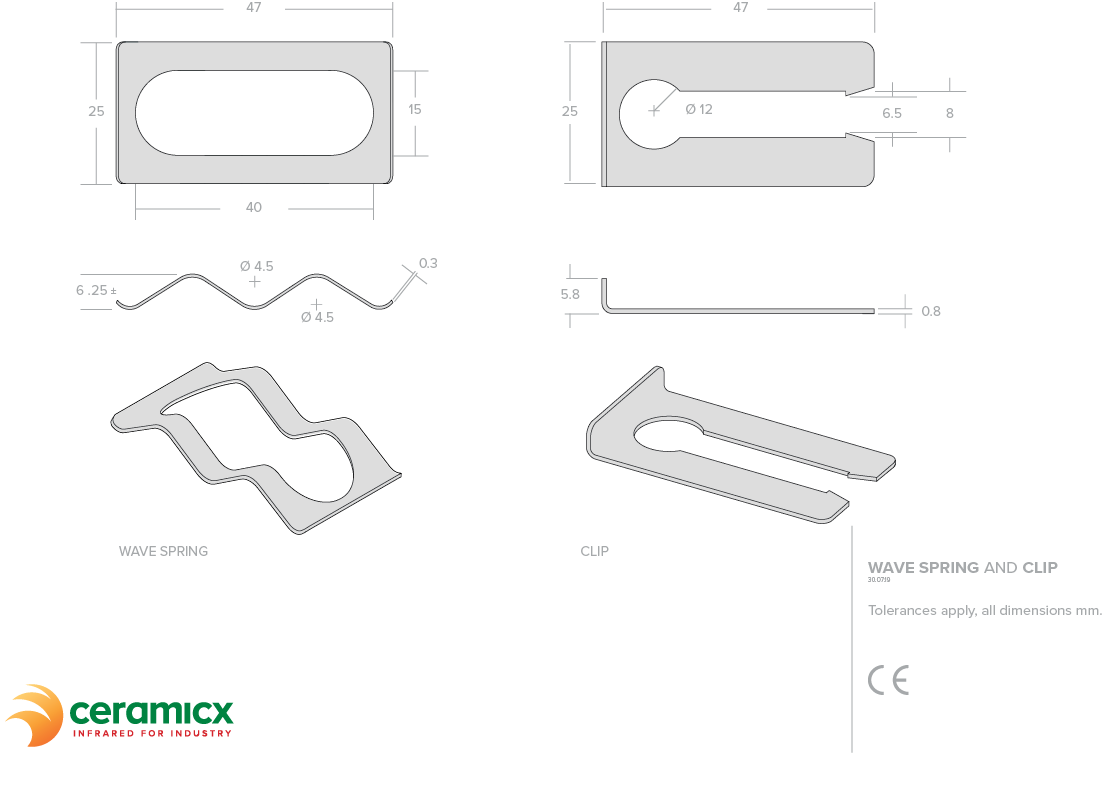

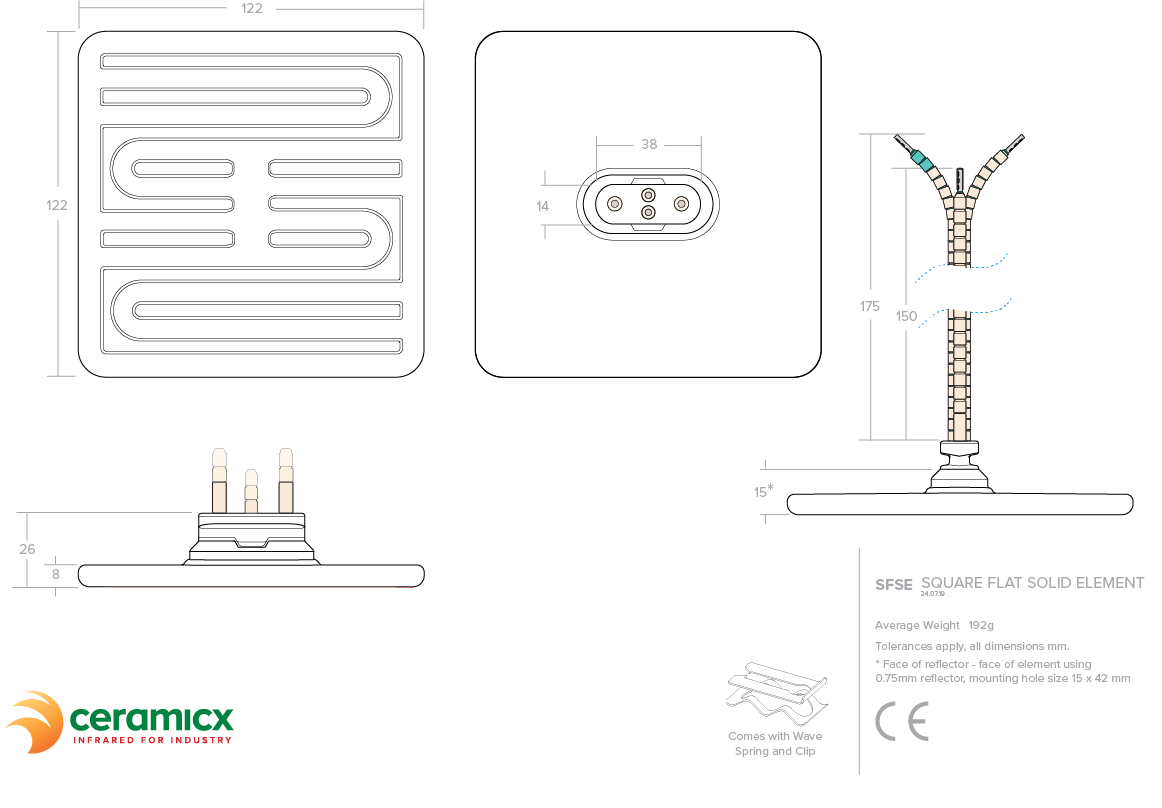

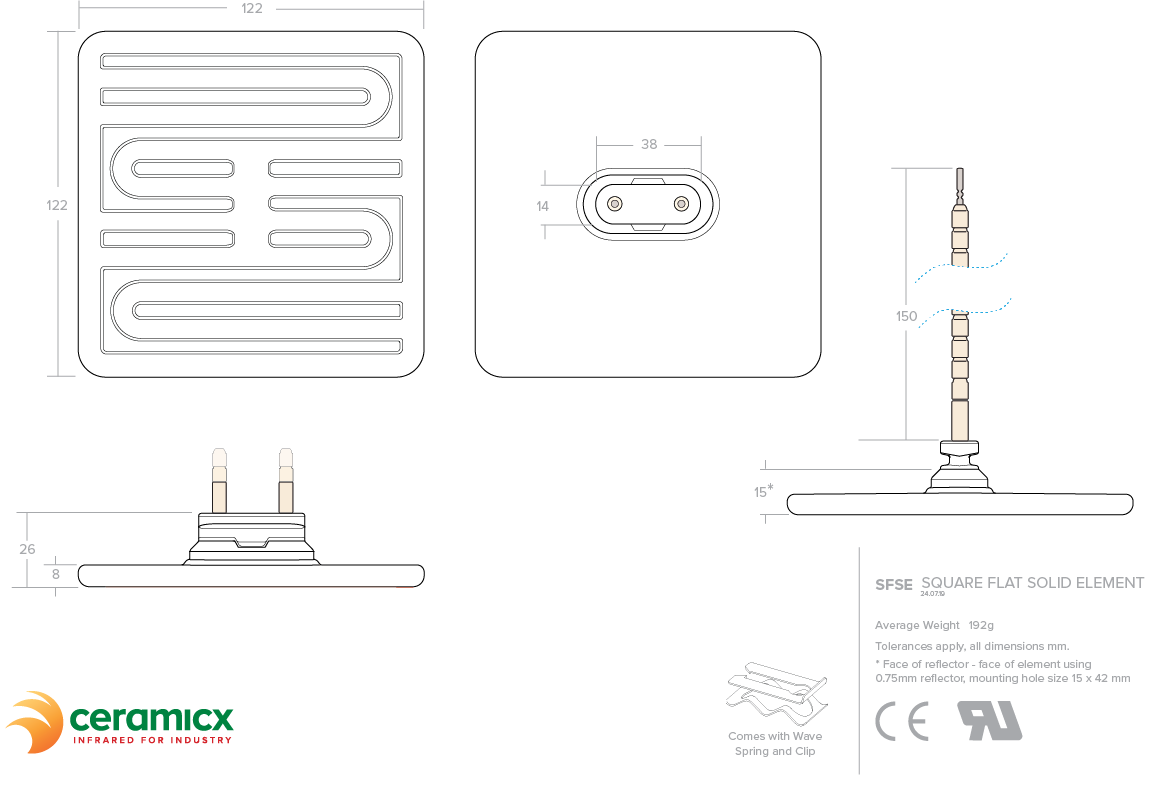

Drawings
Installation Instructions
