Available Wattage: 150 – 500W

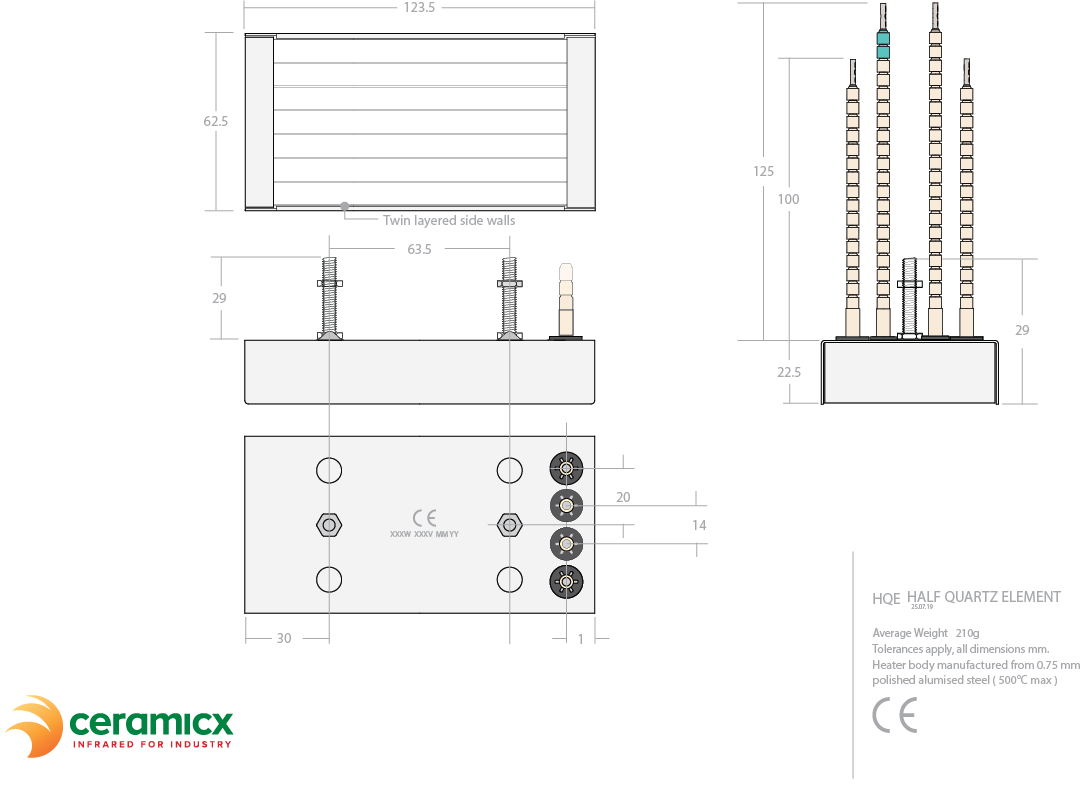

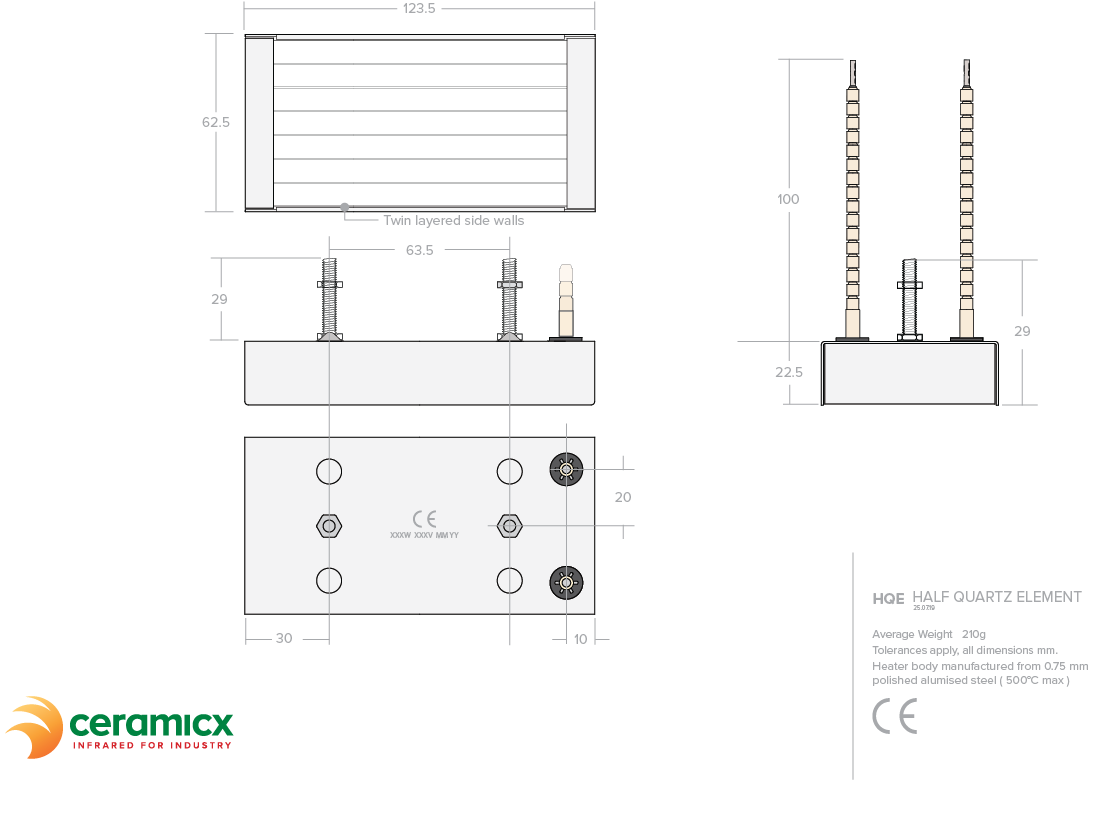

Size: 123.5 x 22.5 x 62.5mm
Useful wavelength range: 1.5 – 8 microns
Average weight: 210g
Heater Voltage: 230V standard
Other Variations: voltages, wattages, lead length and terminations available on request
Average Operating Life: 10,000 hrs depending on conditions
Iron-chrome aluminium resistance wire
Recommended radiation distance from heater is 100 mm to 200 mm
Minimum recommended spacing between elements: 5mm.
Supplied with 100mm ceramic beaded power leads
Ensure temperature of the aluminised steel body does not exceed 500°C (932°F).
