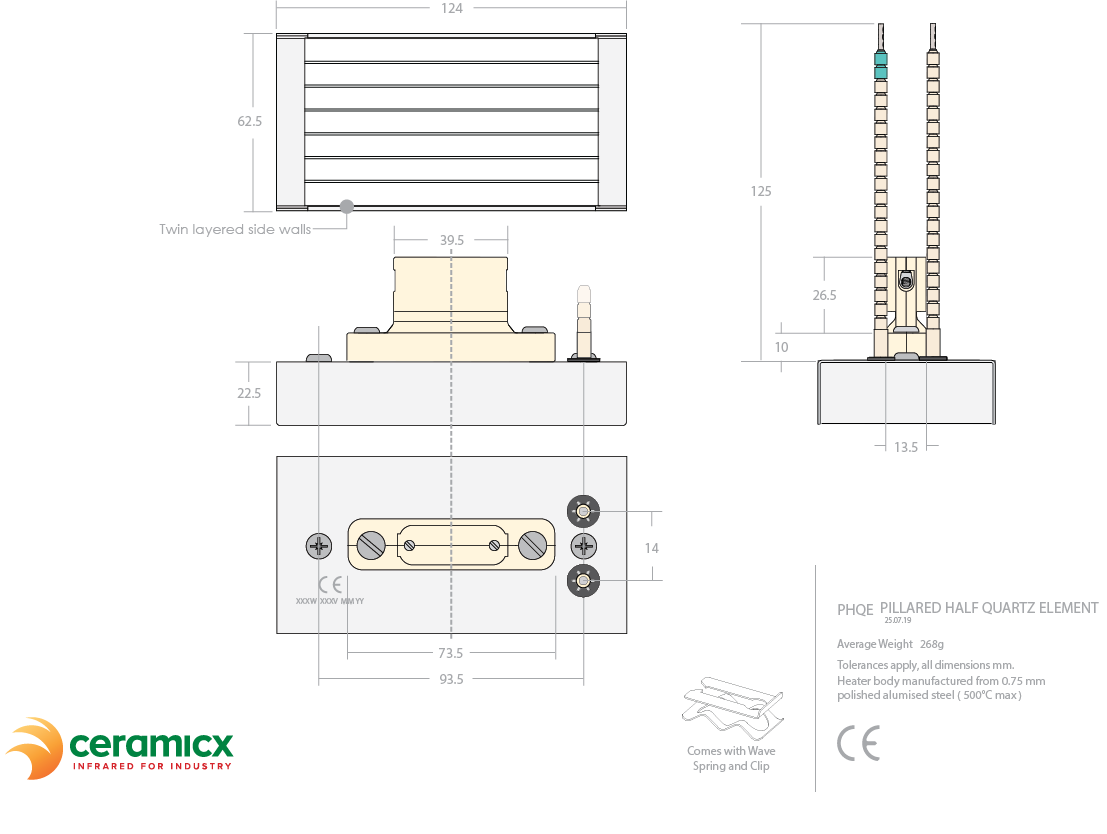

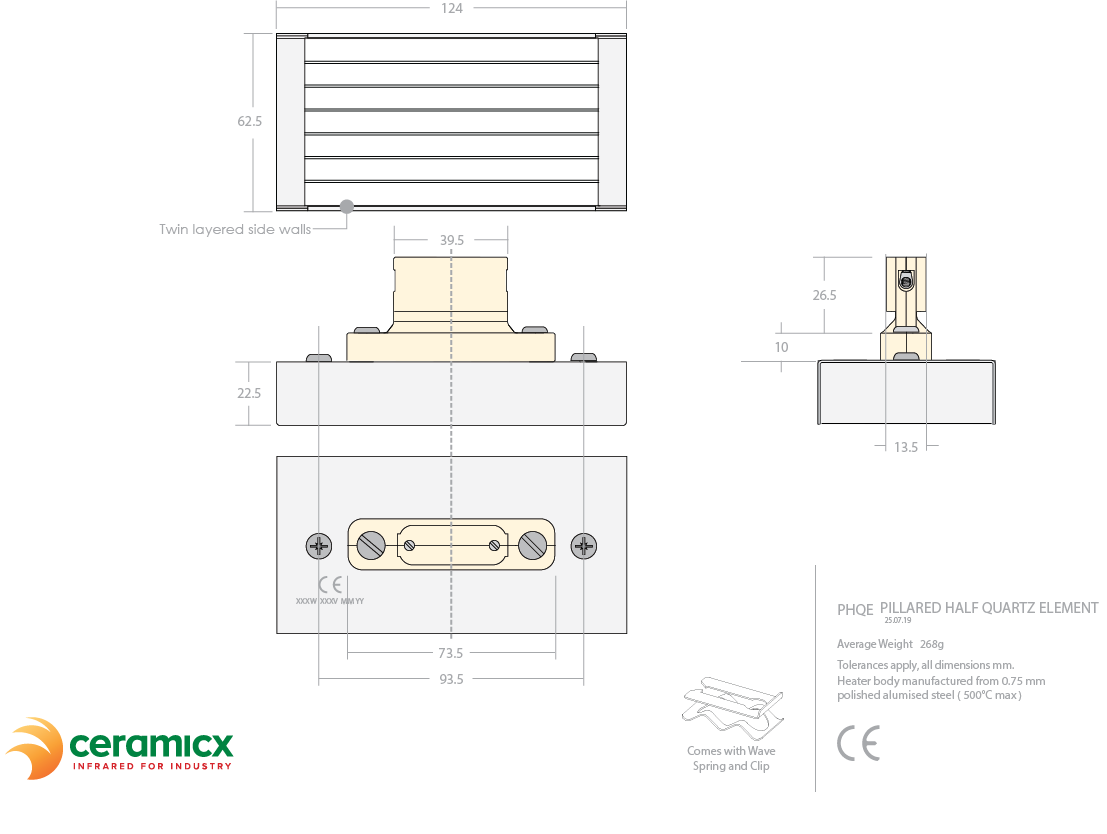

Pillared Half Quartz Element

Açıklama

Available: 125-500W

Size: 123.5 x 62.5 x 59mm

Useful wavelength range: 1.5 – 8 microns

Average Weight 268g

Iron-chrome aluminium resistance wire

Heater Voltage: 230V standard

Other Variations: voltages, wattages, lead length and terminations available on request

Average Operating Life: 10,000 hrs depending on conditions

Recommended radiation distance from heater is 100 mm to 200 mm

Minimum recommended spacing between elements: 5mm.

Standard Quartz Emitters should be used instead of Pillared Quartz Emitters in situations where there is a lot of movement as the metal studs will deal better with mechanical shock than the Ceramic pillars
