Available Wattage: 250 – 1000W

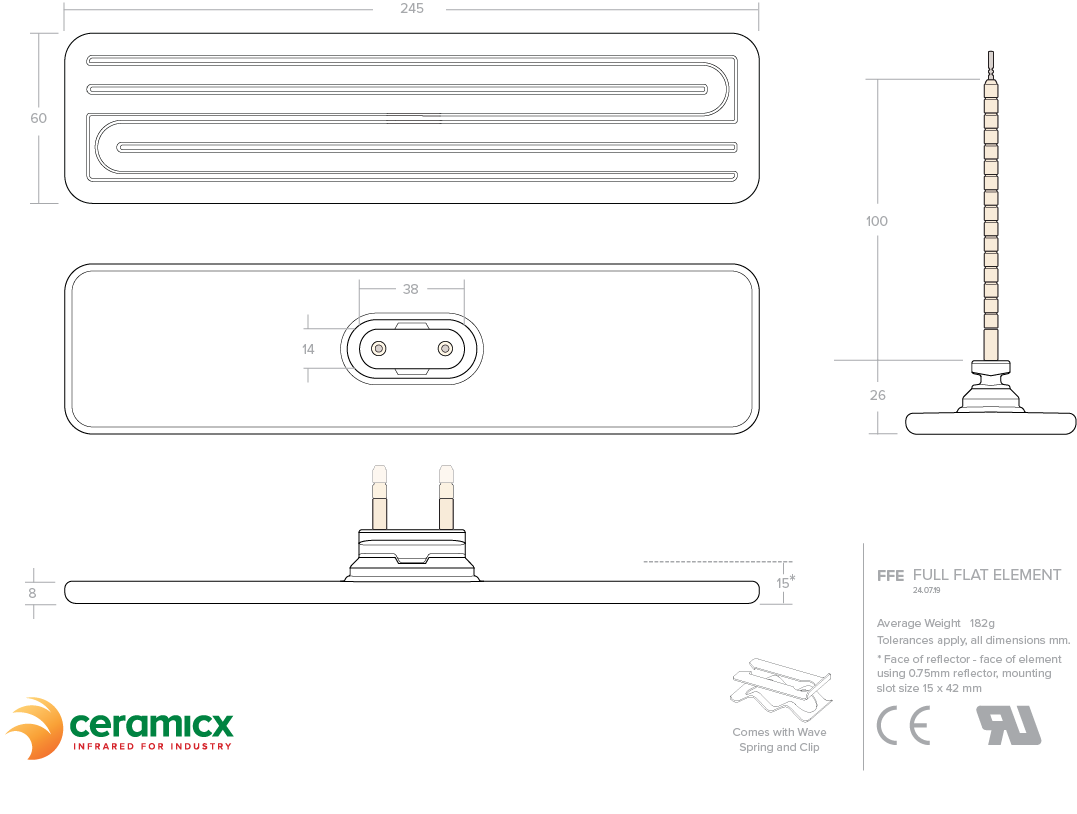

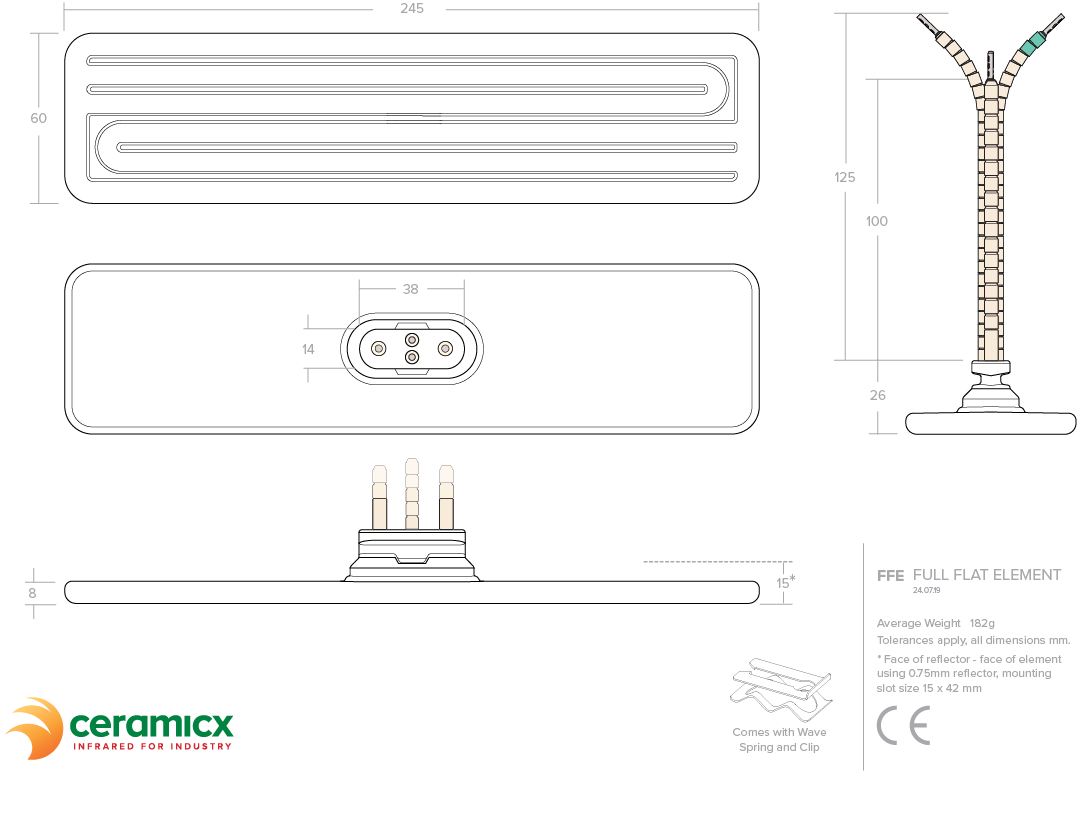

Size: 245 x 60 x 26mm
Average weight: 182g
Iron-chrome aluminium resistance wire
Heater Voltage: 230V standard
Other Variations: voltages, wattages, lead length and terminations available on request
Useful wavelength range: 2-10 microns
Average Operating Life: 20,000 hrs depending on conditions
Click here for details of UL Approval
Recommended radiation distance from heater is 100 mm to 200 mm
Minimum recommended spacing between elements: 5mm
Supplied with 100mm ceramic beaded power leads
| Available Wattage | 250 | 300 | 400 | 500 | 650 | 750 | 1000 |
|---|---|---|---|---|---|---|---|
| Mean surface temp (°C) | 351 | 405 | 480 | 515 | 596 | 624 | 726 |
| Max power density (kW/m2) | 15.3 | 18.4 | 24.6 | 30 | 39 | 45 | 60 |
| Radiant Watt density at 100mm (W/cm2) | 0.25 | 0.47 |

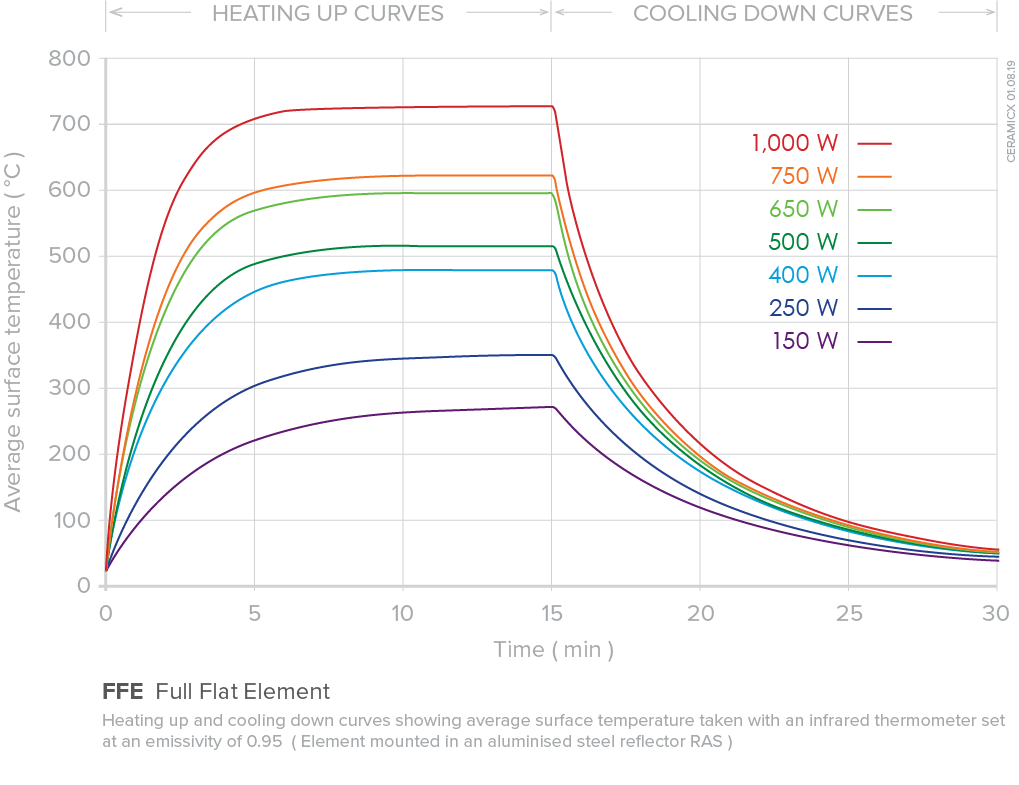

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)
