Large Full Trough Element
Açıklama
Available Wattage: 1000W & 1500W
Size: 245 x 110 x 38.5mm
Average weight: 356g
Iron-chrome aluminium resistance wire
Heater Voltage: 230V standard
Other Variations: voltages, wattages, lead length and terminations available on request
Useful wavelength range: 2-10 microns
Max permissible operating temperature 750°C
Average Operating Life: 20,000 hrs depending on conditions
UL approved (Click here for details)
Recommended radiation distance from heater is 100 mm to 200 mm
Minimum recommended spacing between elements: 5mm.
Supplied with 100mm ceramic beaded power leads
Technical information
| Available Wattage | 1000 | 1500 |
|---|---|---|
| Mean surface temp (°C) | 511 | 596 |
| Max power density (kW/m2) | 34.7 | 52.1 |

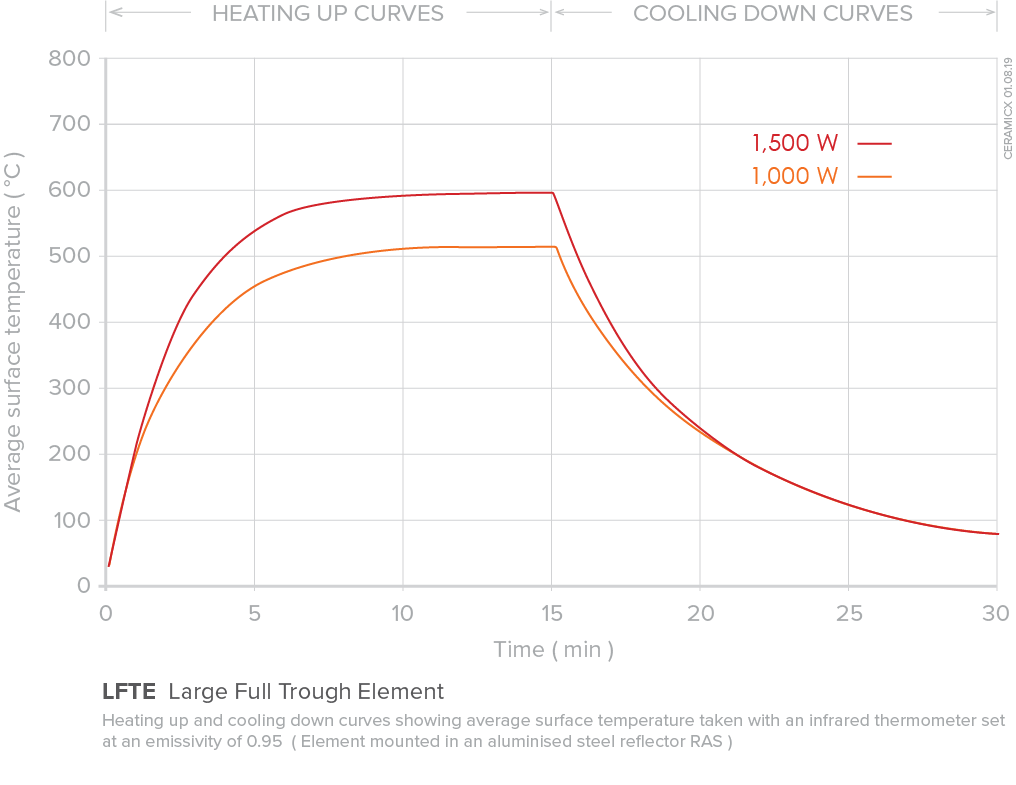

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)

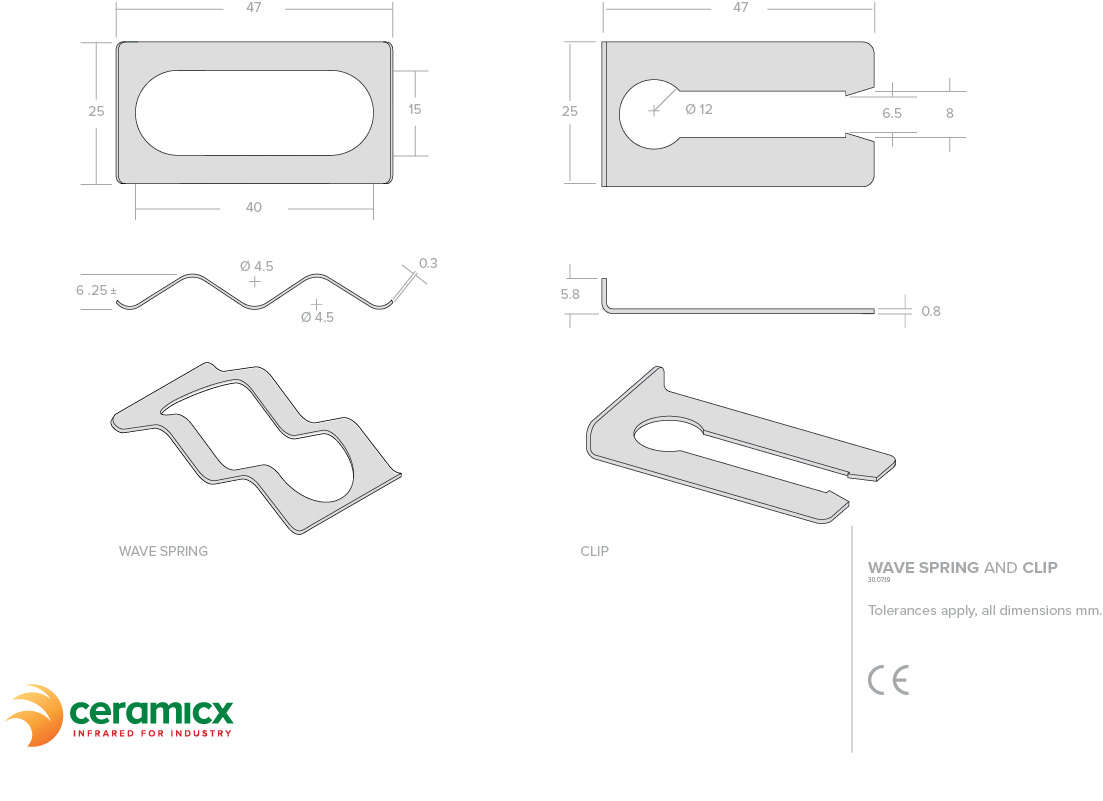

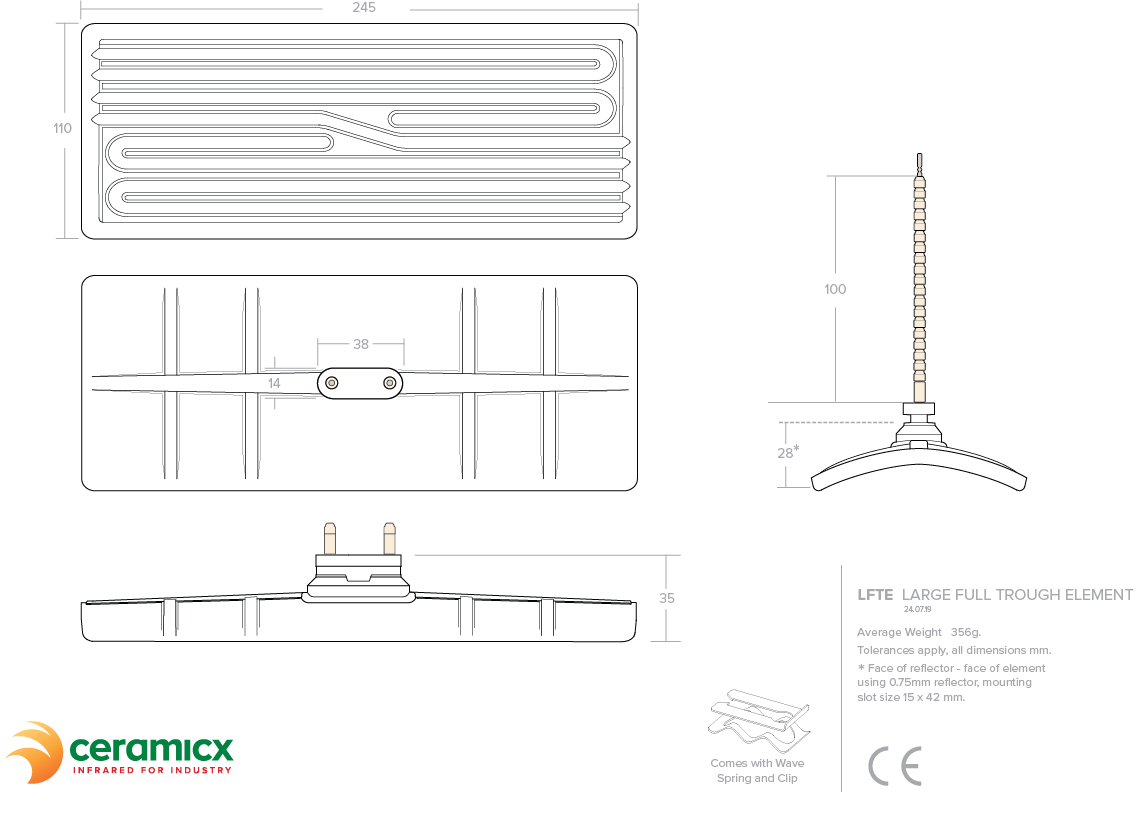

Drawings
Installation Instructions
