Square Flat Element Hollow
Açıklama
Available: 250 – 800W
Size: 122 x 122 x 37.5mm
Average weight: 239g
Iron-chrome aluminium resistance wire
Heater Voltage: 230V standard
Other Variations: voltages, wattages, lead length and terminations available on request
Useful wavelength range: 2-10 microns
Average Operating Life: 20,000 hrs depending on conditions
Recommended radiation distance from heater is 100mm to 200mm
Minimum recommended spacing between elements: 5mm
Supplied with 120mm ceramic beaded power leads
Technical information
| Available Wattage | 250 | 400 | 500 | 600 | 800 |
|---|---|---|---|---|---|
| Mean surface temp (°C) | 390 | 497 | 548 | 602 | 710 |
| Max power density (kW/m2) | 15.5 | 24.8 | 31 | 37.2 | 49.6 |
| Radiant Watt density at 100mm (W/cm2) | 0.28 | 0.51 | 0.81 | 1.18 |

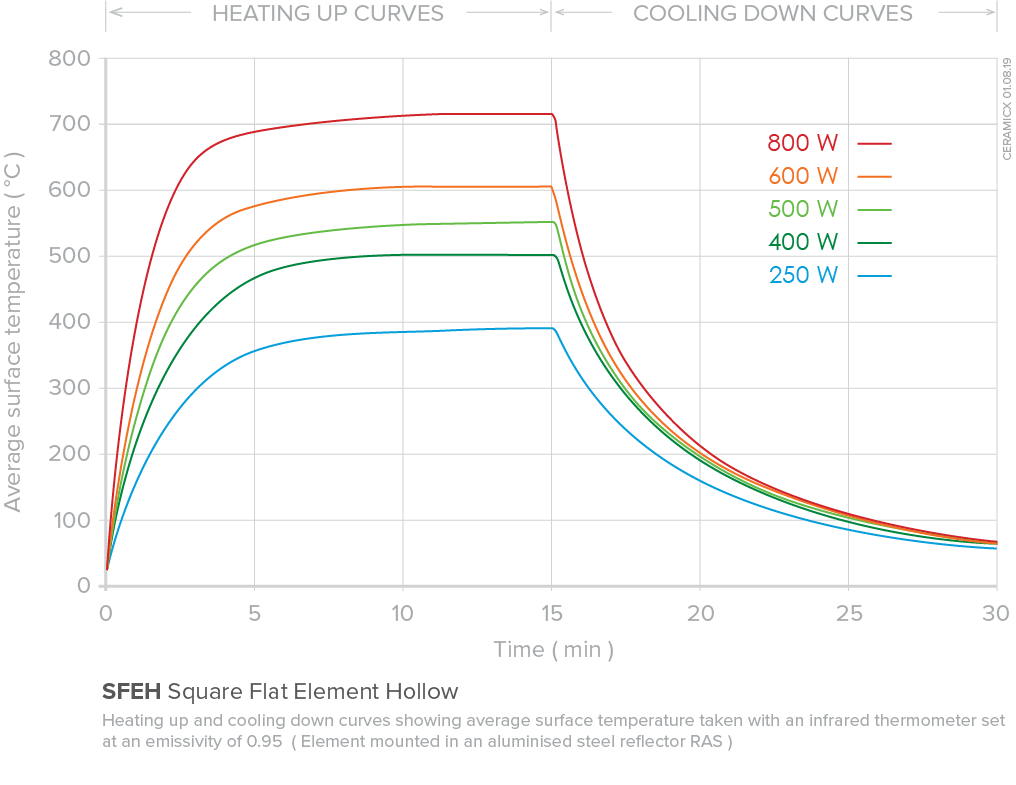

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)

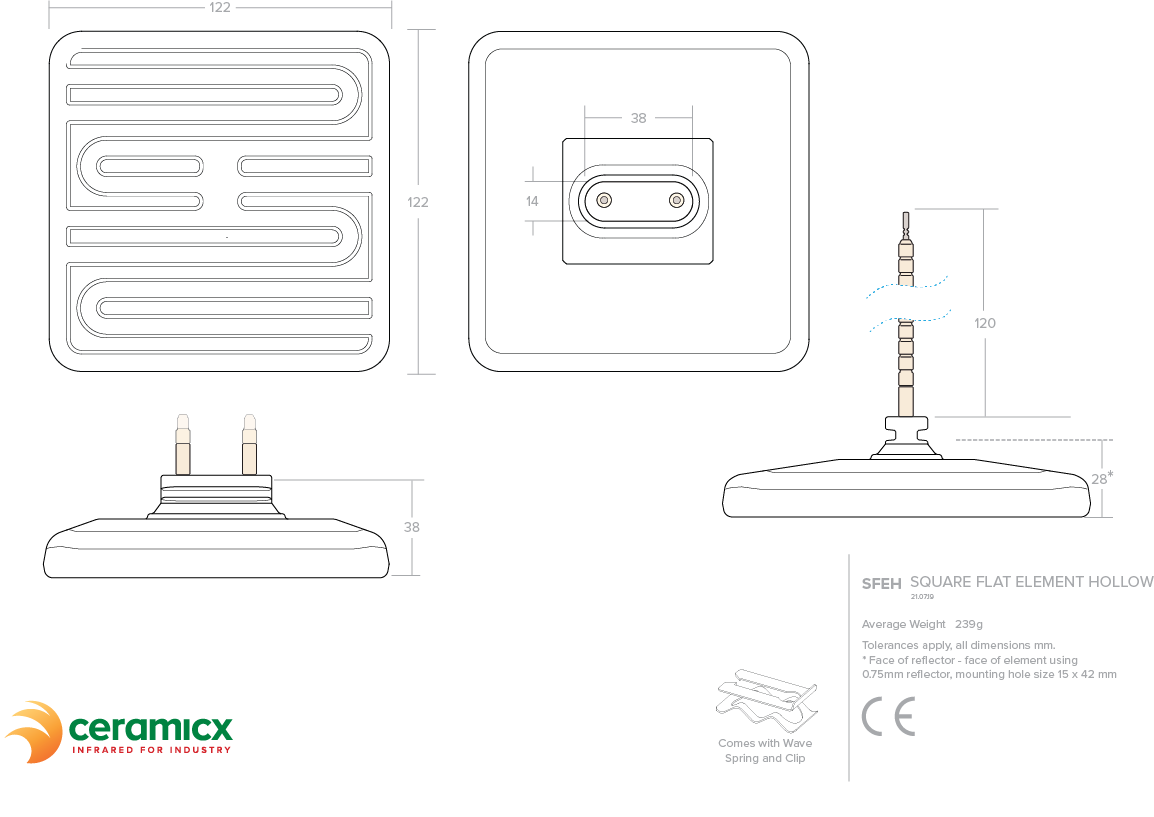

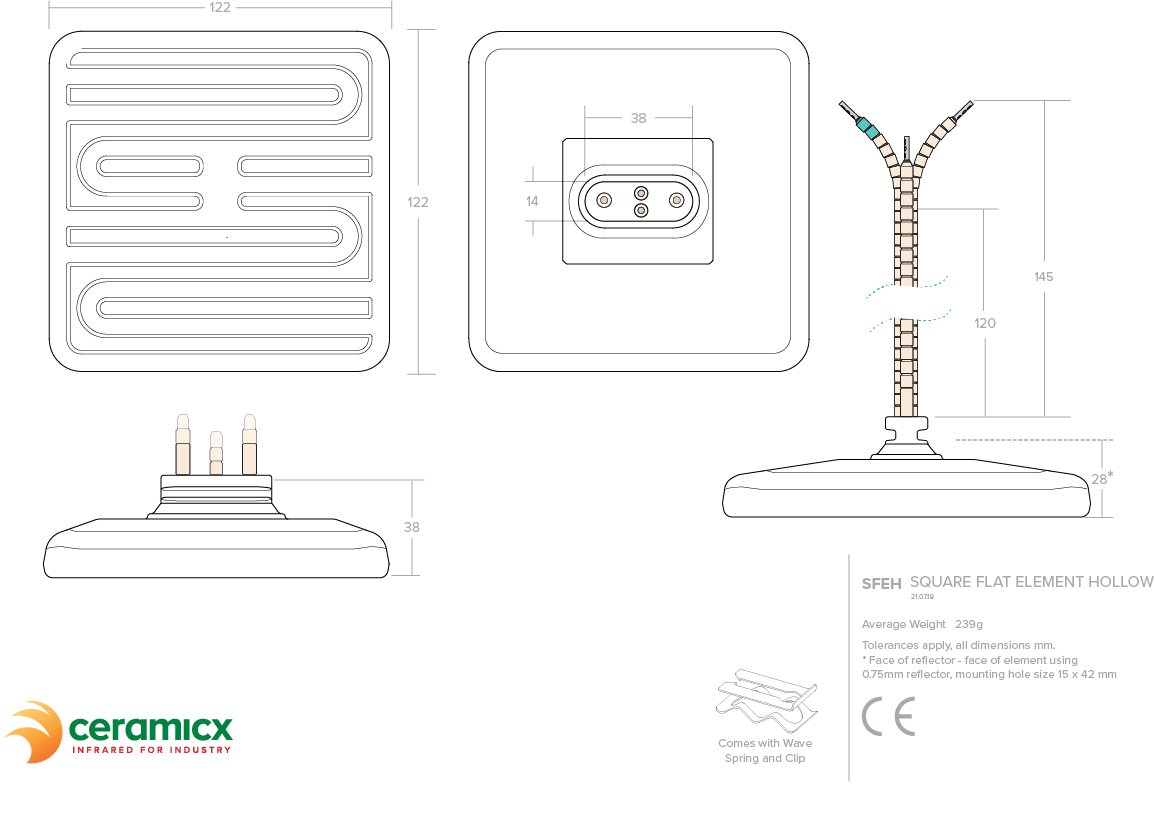

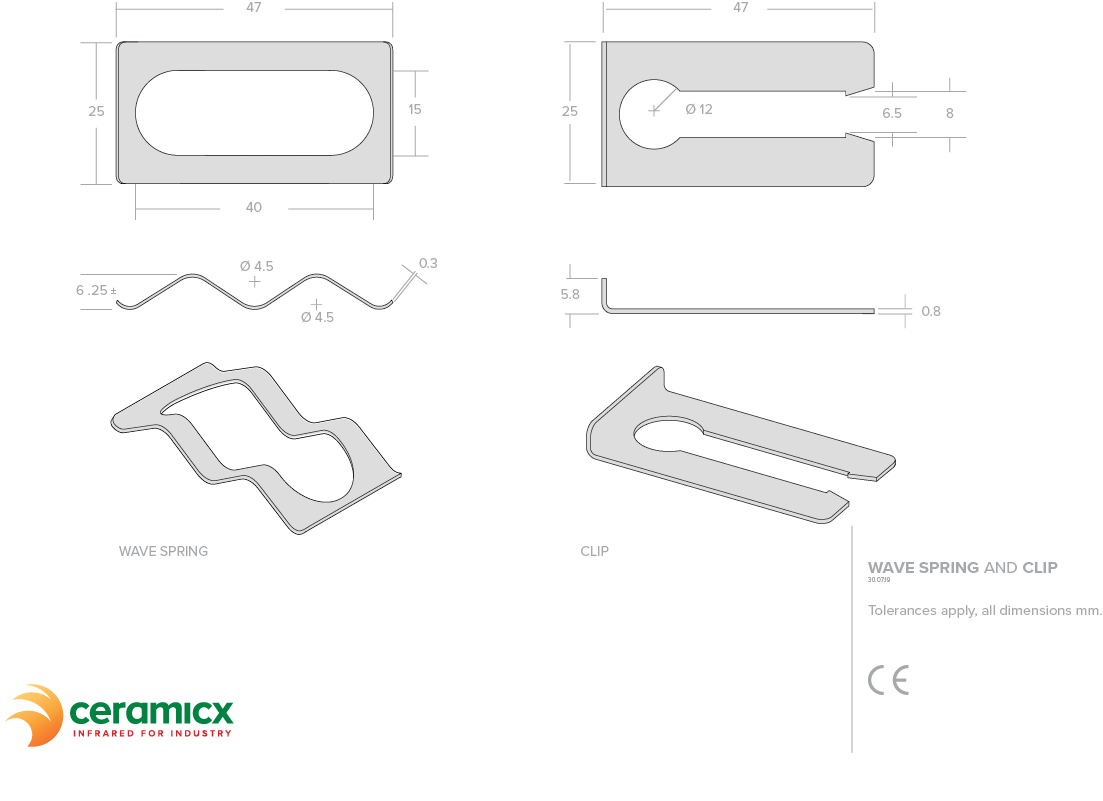

Drawings
Installation Instructions
Related case studies
-
Modular Long-Wave Infrared Heaters In Composite Curing
-
Heat-Shrinking Test Unit For Automotive Sector
-
Pre-Heat and Main-Heat System
-
Thermoforming System Upgrade for Insulation Provider
-
MSE look to infrared to overcome system inefficiencies
-
Upgrading Food Packaging Thermoforming Lines
-
Composite Pre-Heat Oven
-
Long Wave Composite Curing Oven
-

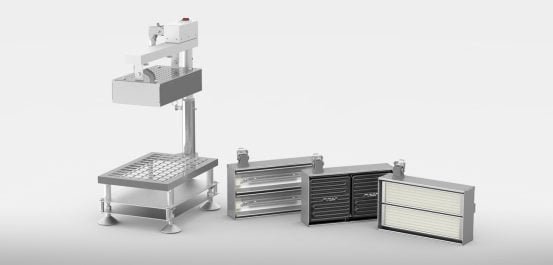

Portable Test Oven
-
