Modular IR 260

Açıklama

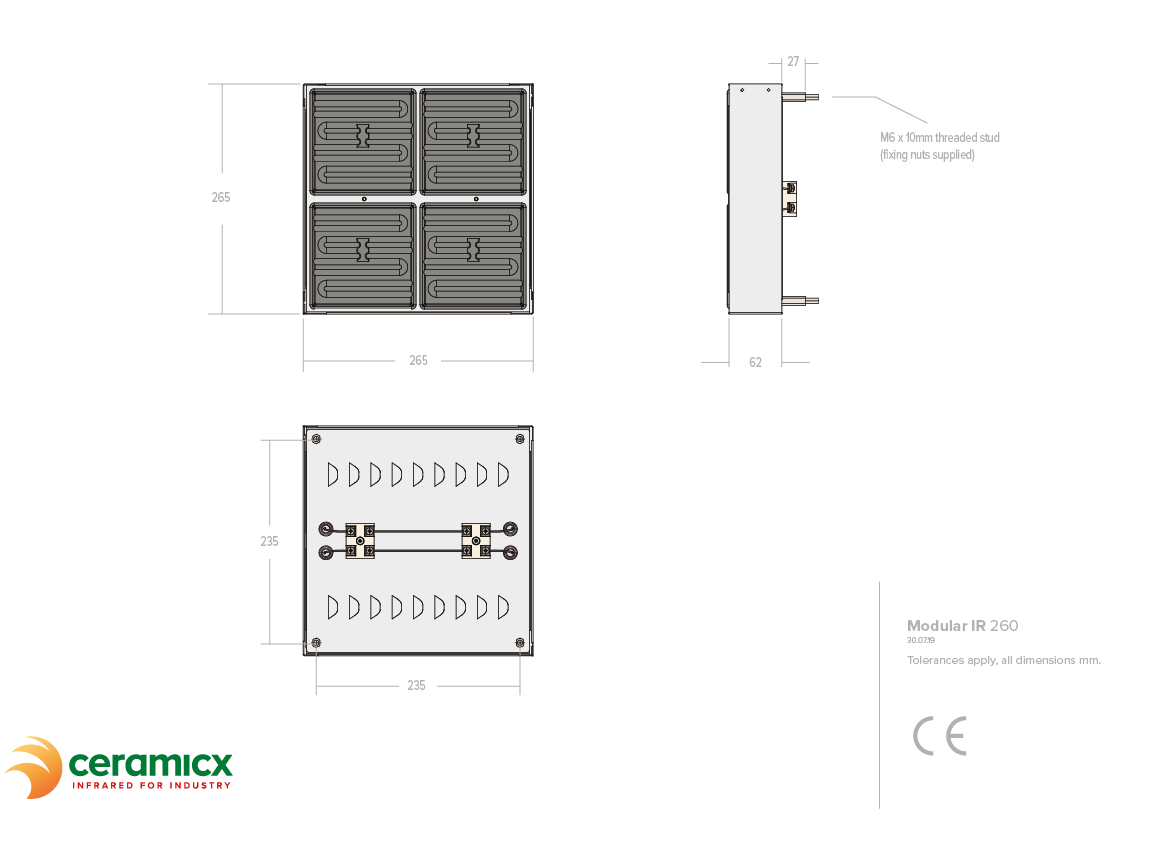

Size: 265 x 265 x 62mm

Voltage: 240V and 460V

Recommended emitters: 600W SFEH

The modular IR 260 is a robust modular heating solution which allows multiple units to be arrayed with equal element spacing when heating a large surface area. It is fitted with high efficiency black ceramic hollow elements – model SFEH (2 x 2 array). The unit can be wired with either series or parallel connection allowing use with different supply voltages.

The outer casing is manufactured from stainless steel with the inner reflector manufactured from high reflectivity polished aluminised steel. The unit is fixed using 4 aluminium stand-off’s with M6 threaded screws and fixing nuts. Optional type K thermocouple can be installed in one of the ceramic emitters. This can be connected using the removable ceramic type K plug which is supplied as standard with thermocouple units.

The IR 260 provides a modular solution for machine builders and end users alike that choose to build their own ovens or rebuild existing ovens. Once a suitable framework is in place, the modular design reduces installation and wiring time and provides high intensity heating with a power density of up to 35 kW/m².
