Large Full Flat Element
Açıklama
Available Wattage: 650-1400W
Size: 245 x 95 x 26mm
Average weight: 342g
Iron-chrome aluminium resistance wire
Heater Voltage: 230V standard
Other Variations: voltages, wattages, lead length and terminations available on request
Useful wavelength range: 2-10 microns
Average Operating Life: to 20,000 hrs depending on conditions
Click here for details of UL Approval
Recommended radiation distance from heater is 100 mm to 200 mm
Minimum recommended spacing between elements: 5mm
Supplied with 150mm ceramic beaded power leads

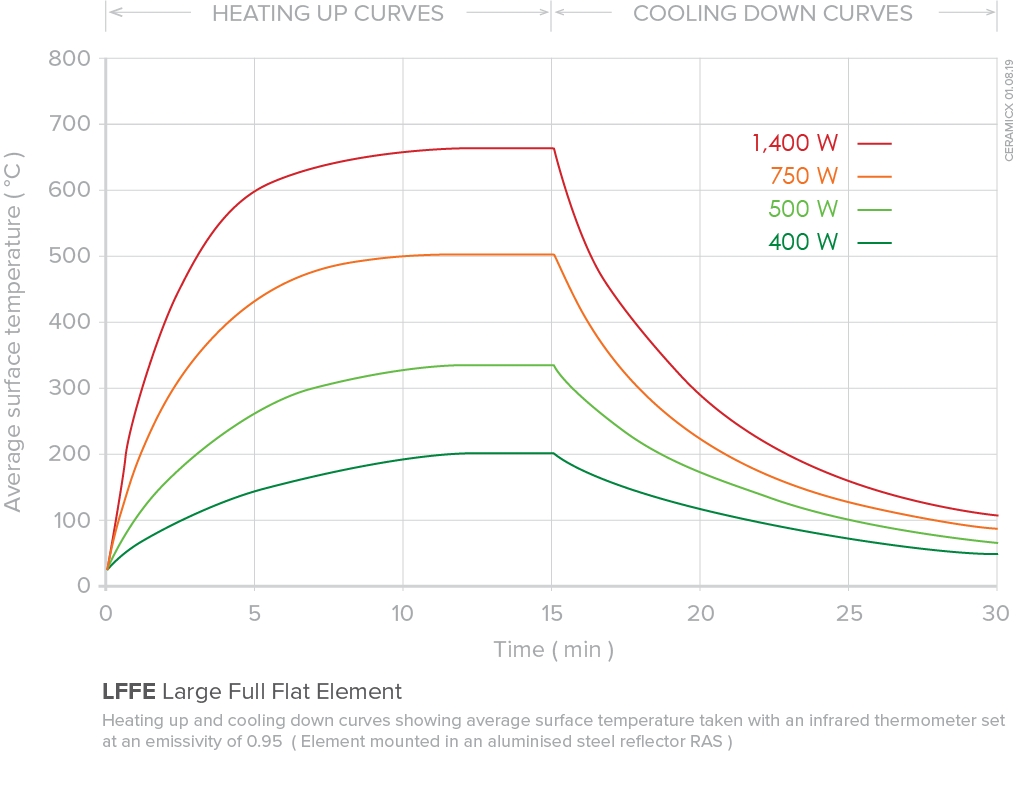

Technical information
| Available Wattage | 650 | 750 | 1400 |
|---|---|---|---|
| Mean surface temp (°C) | 428 | 501 | 667 |
| Max power density (kW/m2) | 26 | 30 | 56 |
Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)

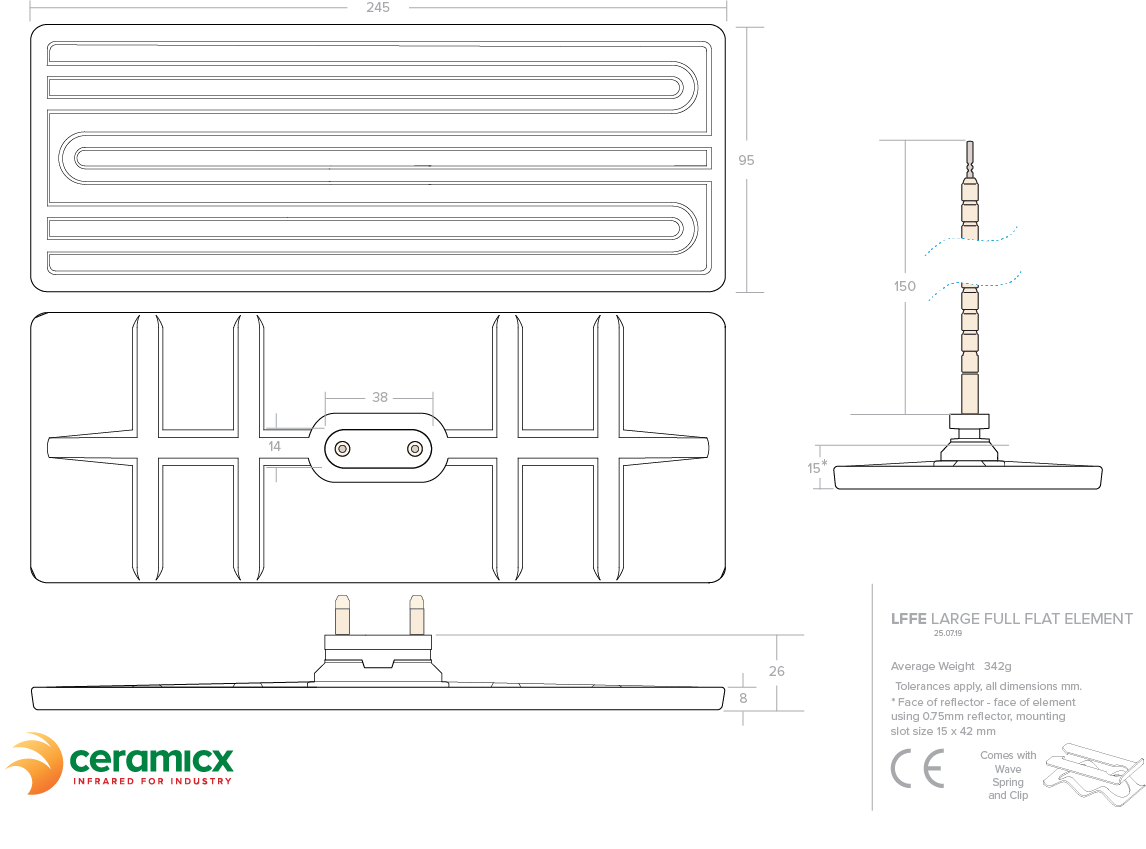

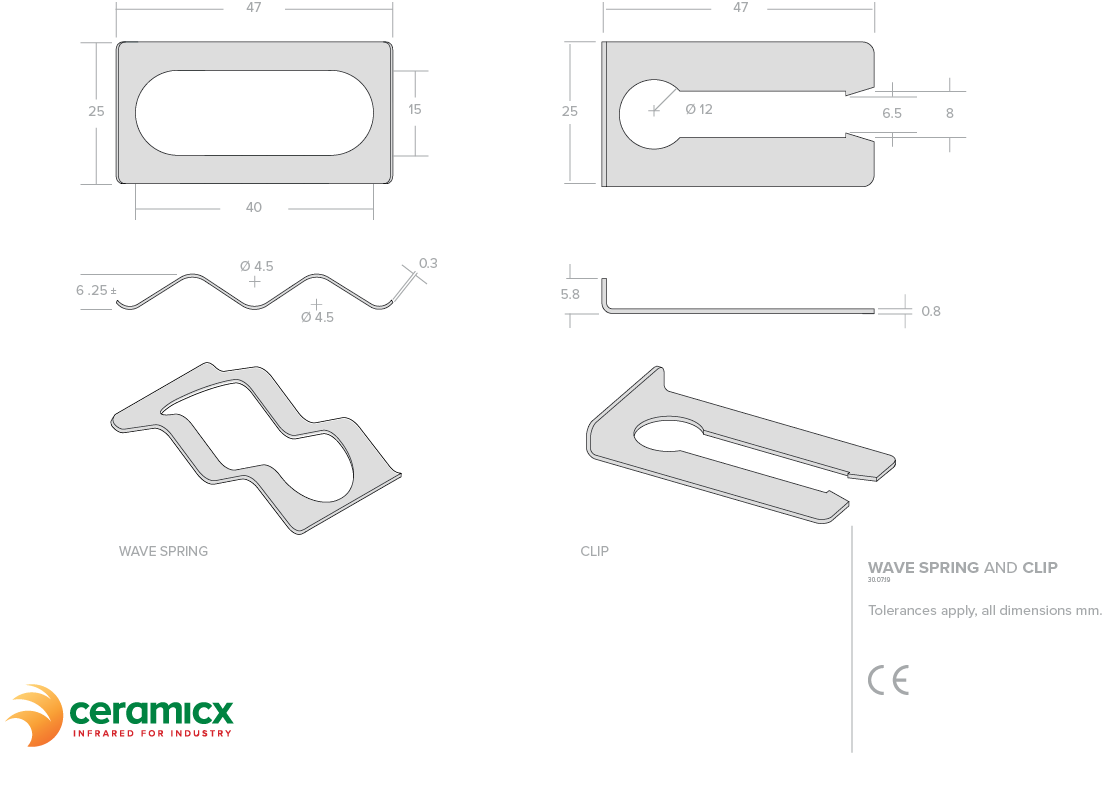

Drawings
Installation Instructions
