Half Flat Element
Açıklama
Available Wattage: 125 – 500W
Size: 122 x 60 x 26mm
Average weight: 105g
Iron-chrome aluminium resistance wire
Heater Voltage: 230V standard
Other Variations: voltages, wattages, lead length and terminations available on request
Useful wavelength range: 2-10 microns
Average Operating Life: 20,000 hrs depending on conditions
Click here for details of UL Approval
Recommended radiation distance from heater is 100 mm to 200 mm
Minimum recommended spacing between elements: 5mm
Supplied with 100mm ceramic beaded power leads

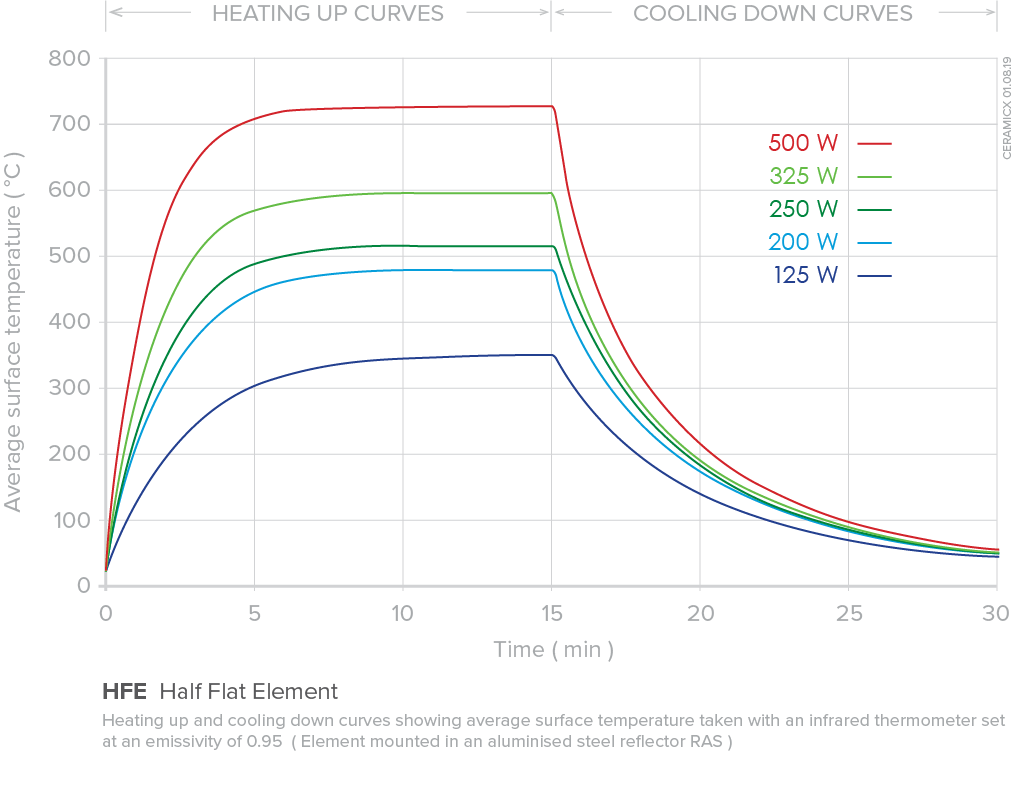

Technical information
| Available Wattage | 125 | 150 | 250 | 325 | 400 | 500 |
|---|---|---|---|---|---|---|
| Mean surface temp (°C) | 351 | 405 | 515 | 596 | 640 | 726 |
| Max power density (kW/m2) | 15.1 | 18 | 30 | 39 | 48.4 | 60 |
Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)

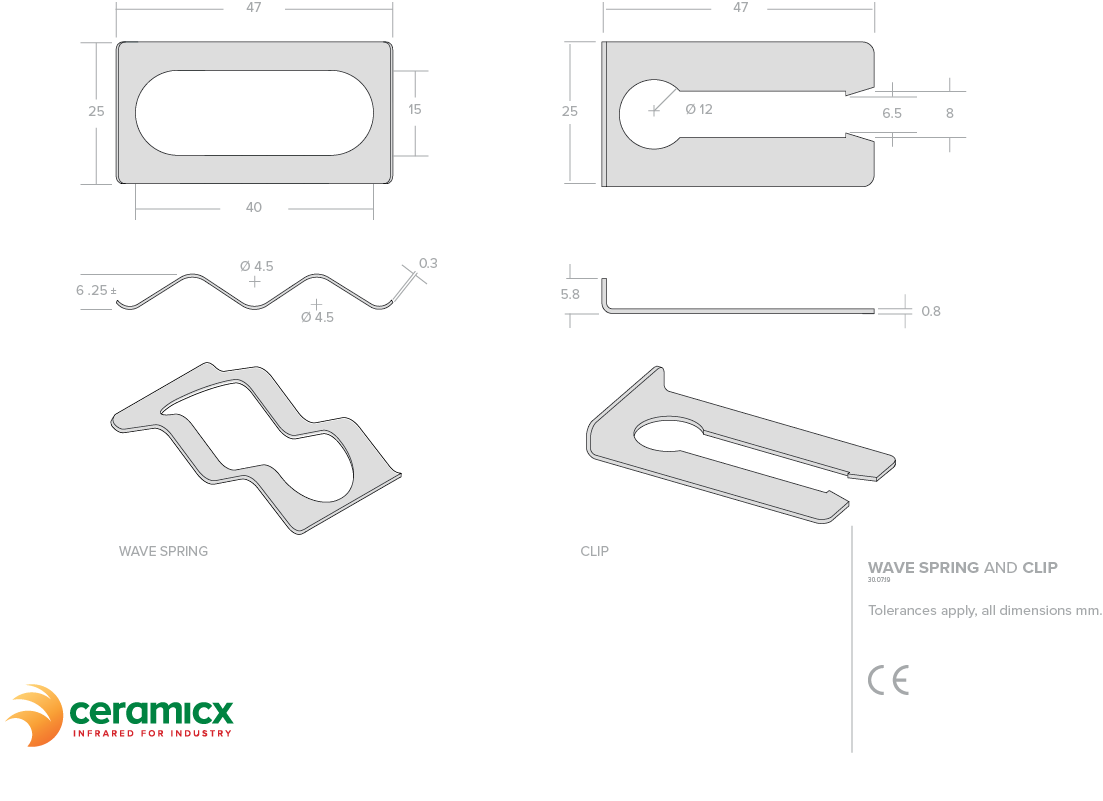

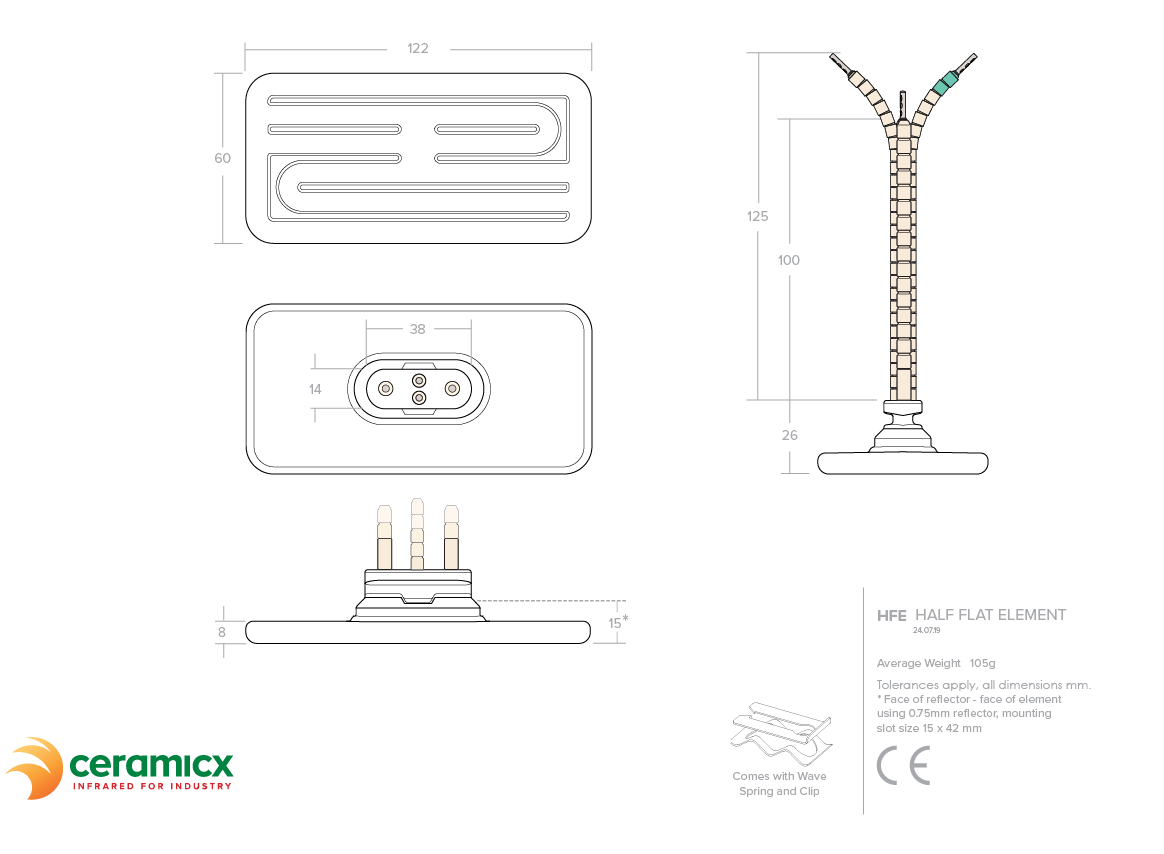

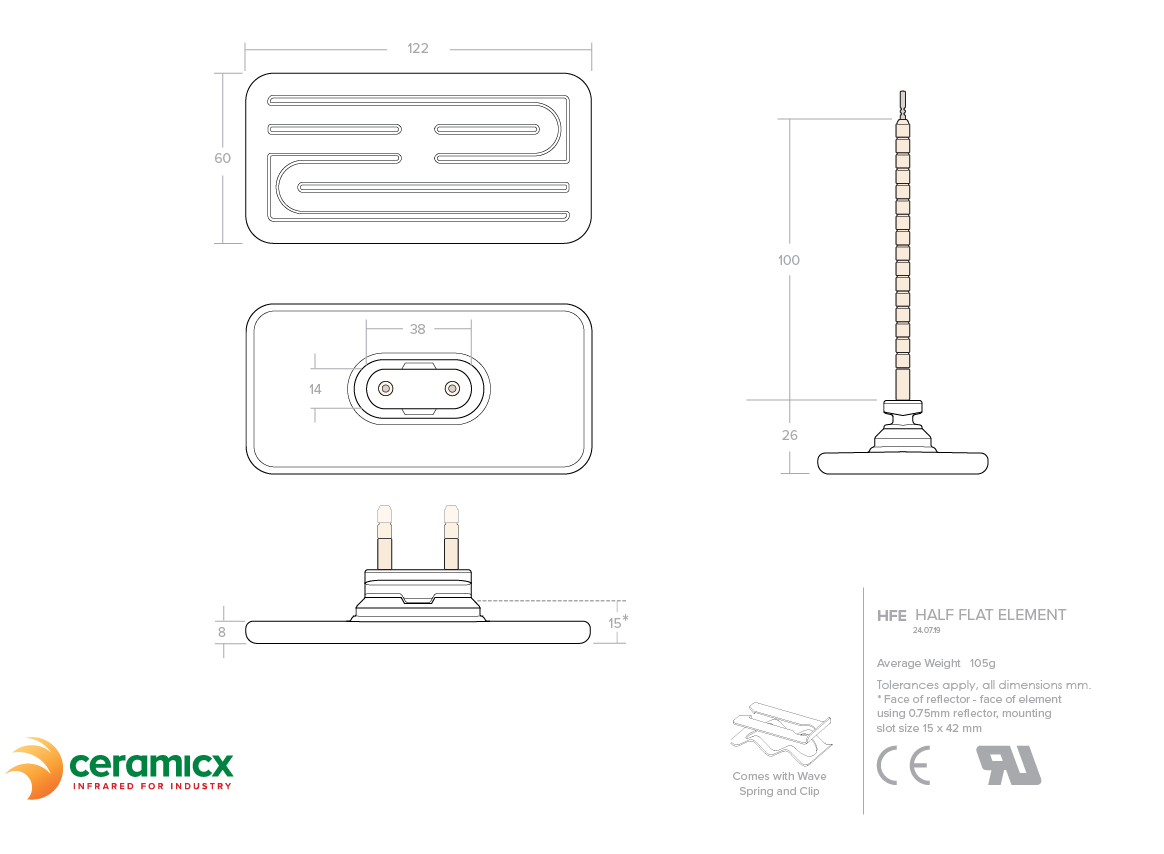

Drawings
Installation Instructions
