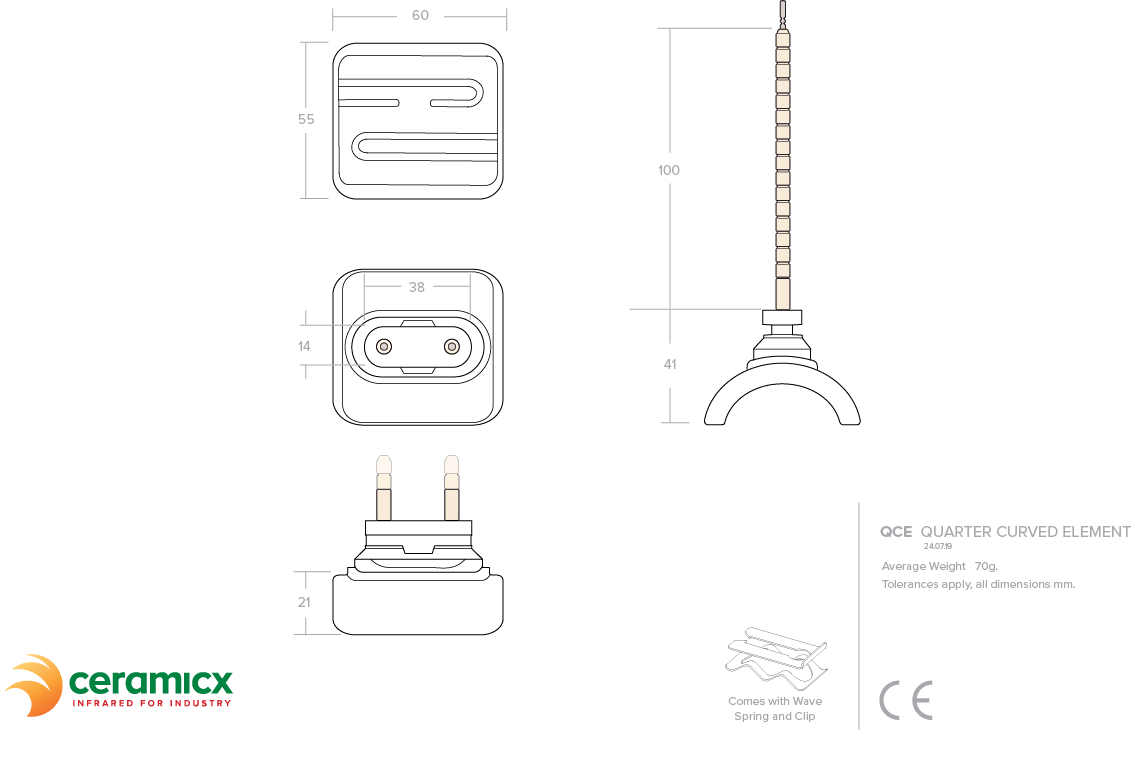

Quarter Curved Trough Element
Açıklama
Available Wattage: 250W
Size: 60 x 55 x 34mm
Average weight: 70g
Iron-chrome aluminium resistance wire
Heater Voltage: 230V standard
Other Variations: voltages, wattages, lead length, terminations available on request
Useful wavelength range: 2-10 microns
Average Operating Life: 20,000 hrs depending on conditions
Recommended radiation distance from heater is 100 mm to 200 mm.
Minimum recommended spacing between elements: 5mm.
Supplied with 100mm ceramic beaded power leads
Technical information
| Available Wattage | 250 |
|---|---|
| Mean surface temp (°C) | 592 |
| Max power density (kW/m2) | 64.1 |

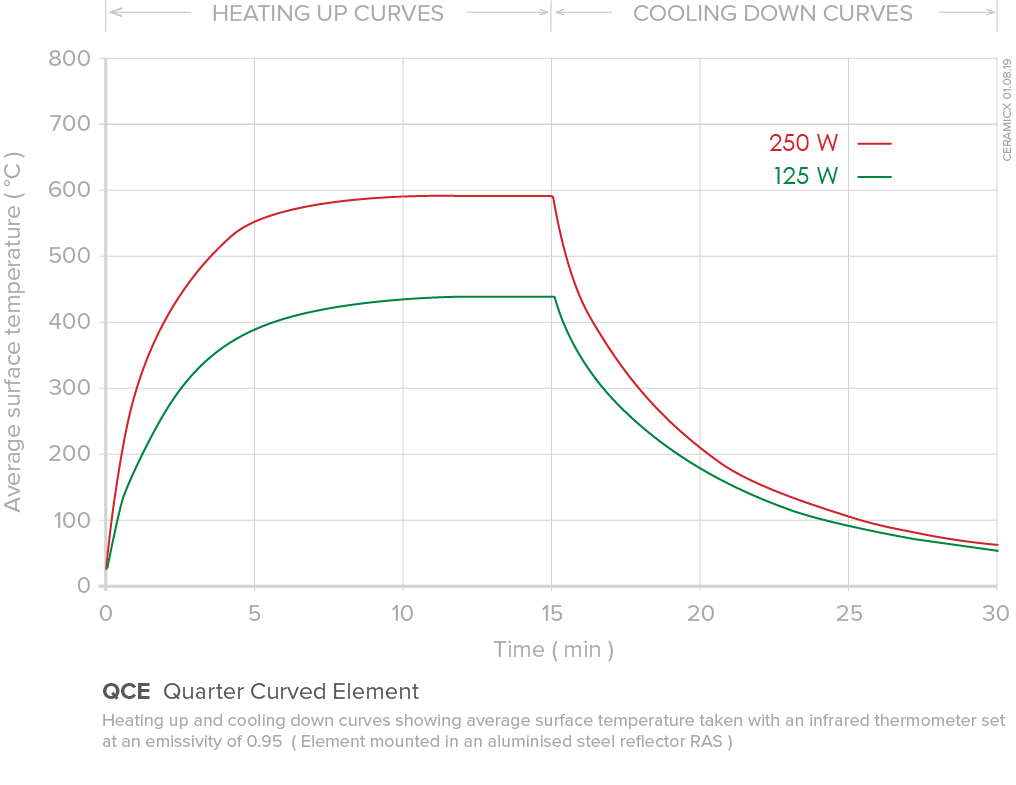

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)
