Quarter Flat Element Hollow
Açıklama
Available Wattage: 125-200W
Size: 60 x 60 x 37.5mm
Average weight: 65g
Iron-chrome aluminium resistance wire
Heater Voltage: 230V standard
Other Variations: voltages, wattages, lead length and terminations available on request
Useful wavelength range: 2-10 microns
Average Operating Life: 20,000 hrs depending on conditions
Recommended radiation distance from heater is 100 mm to 200 mm
Minimum recommended spacing between elements: 5mm
Supplied with 120mm ceramic beaded power leads
Technical information
| Available Wattage | 125 | 200 |
|---|---|---|
| Mean surface temp (°C) | 548 | 710 |
| Max power density (kW/m2) | 30 | 48 |

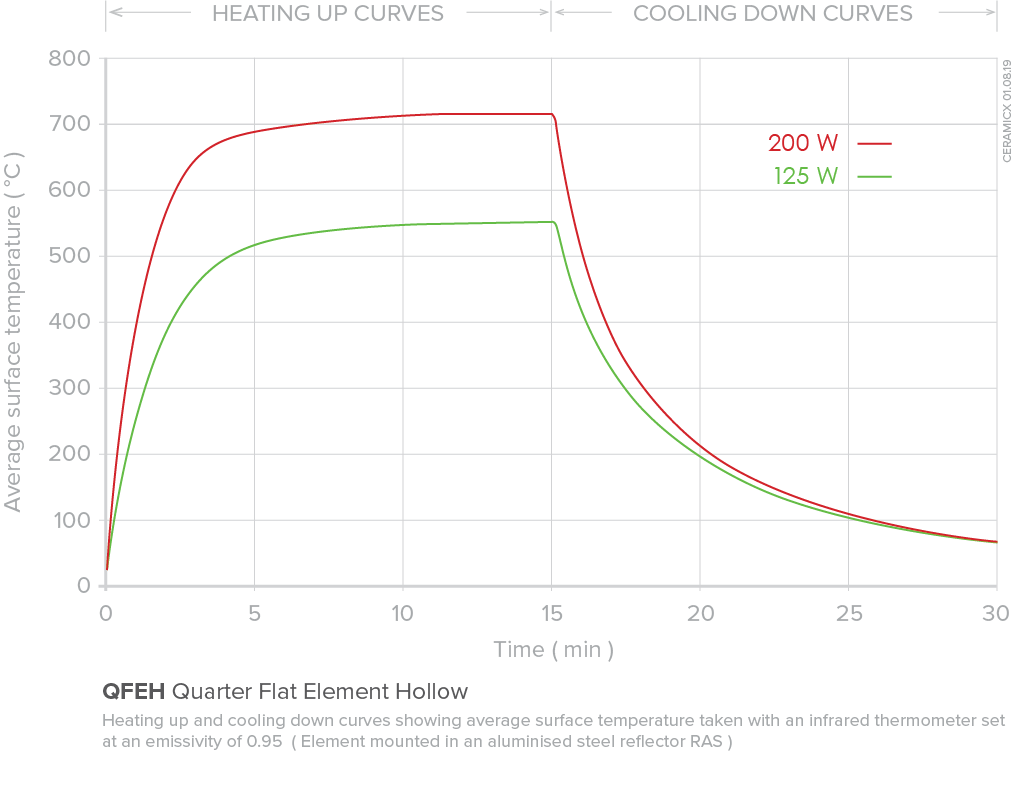

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)

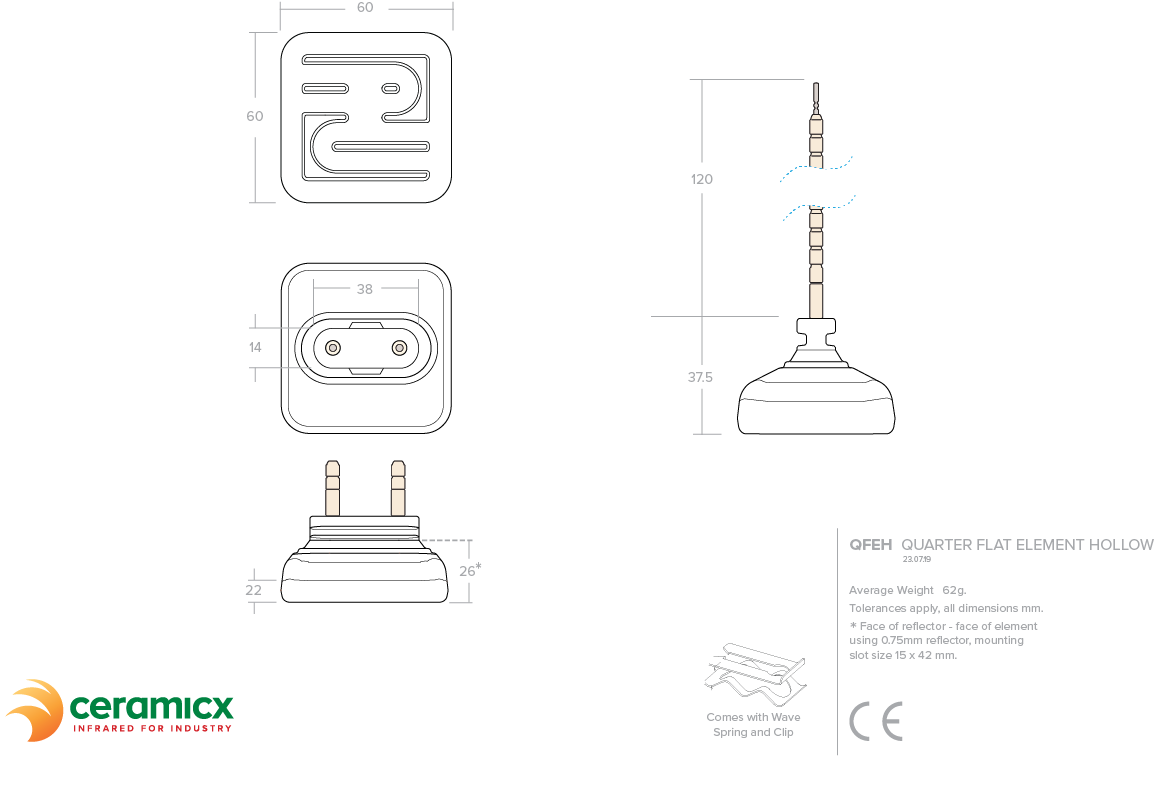

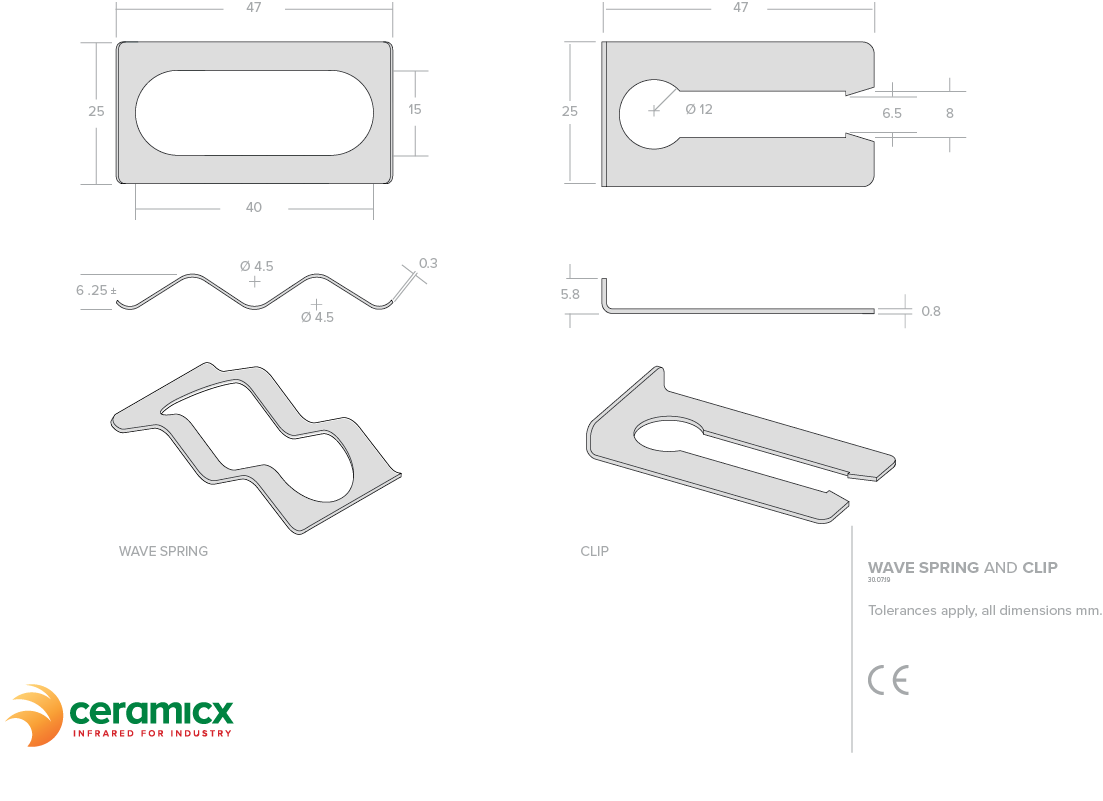

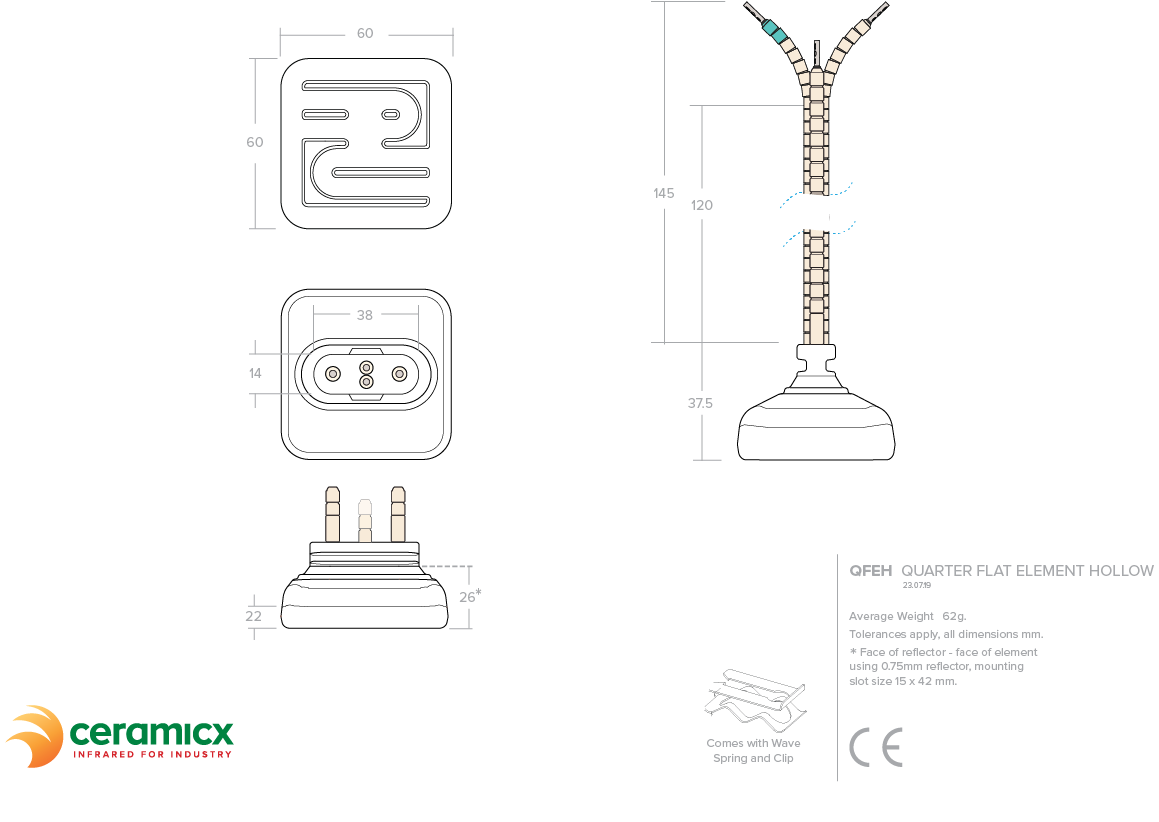

Drawings
Installation Instructions
