Available Wattage: 250 – 800W

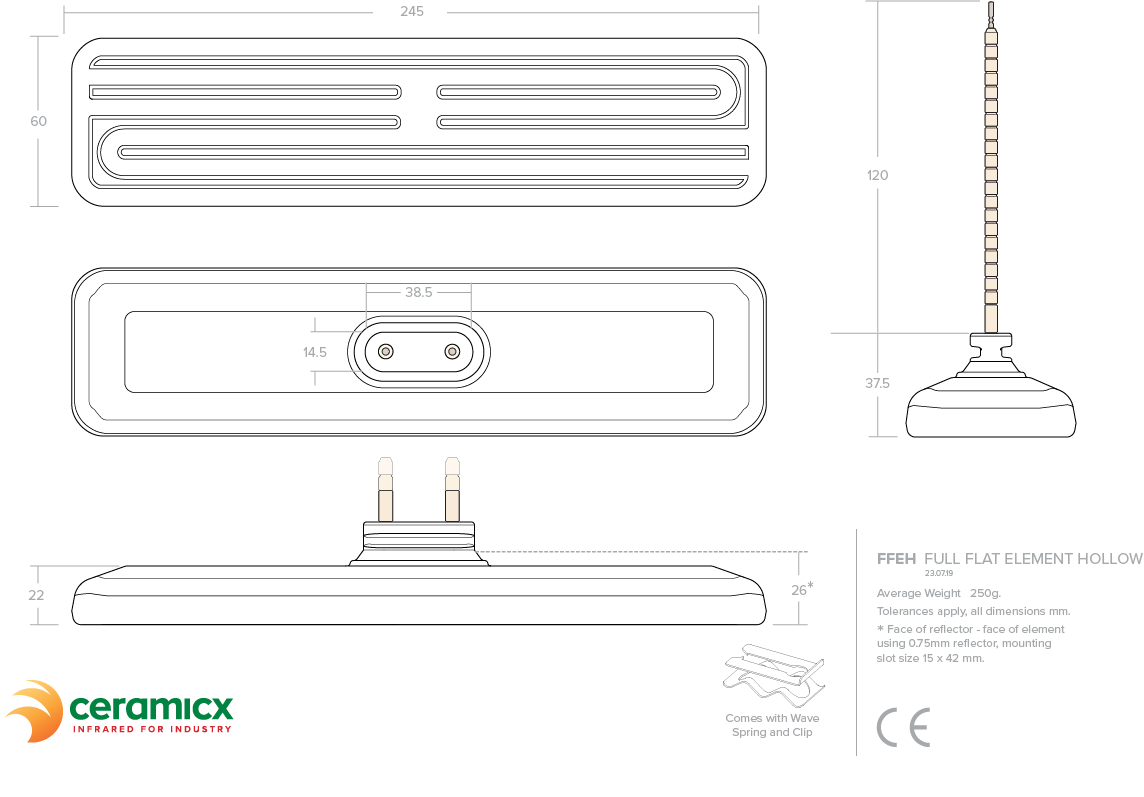

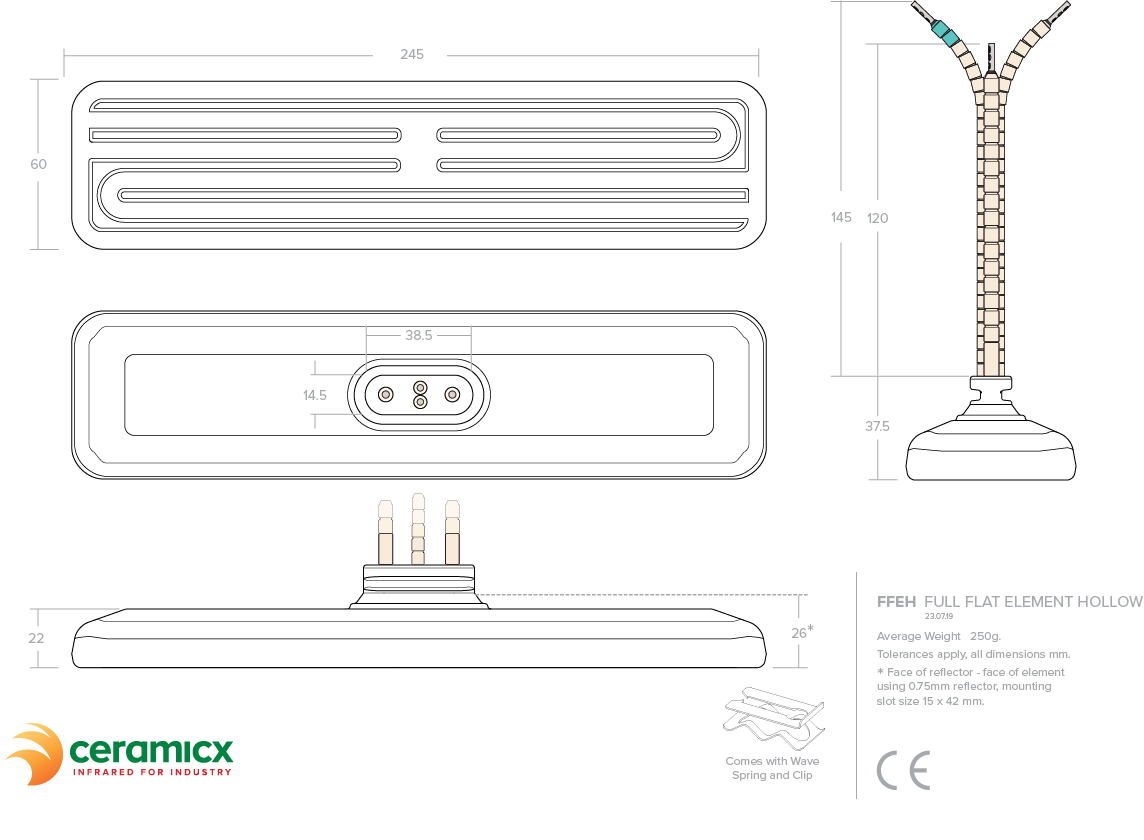

Size: 245 x 60 x 37.5mm
Average weight: 250g
Iron-chrome aluminium resistance wire
Heater Voltage: 230V standard
Other Variations: voltages, wattages, lead length and terminations available on request
Useful wavelength range: 2-10 microns
Average Operating Life: 20,000 hrs depending on conditions
Recommended radiation distance from heater is 100 mm to 200 mm
Minimum recommended spacing between elements: 5mm
Supplied with 120mm ceramic beaded power leads
| Available Wattage | 250 | 400 | 600 | 800 |
|---|---|---|---|---|
| Mean surface temp (°C) | 390 | 497 | 602 | 710 |
| Max power density (kW/m2) | 15 | 24 | 36 | 48 |
| Radiant Watt density at 100mm (W/cm2) | 0.25 | 0.44 | 0.73 |

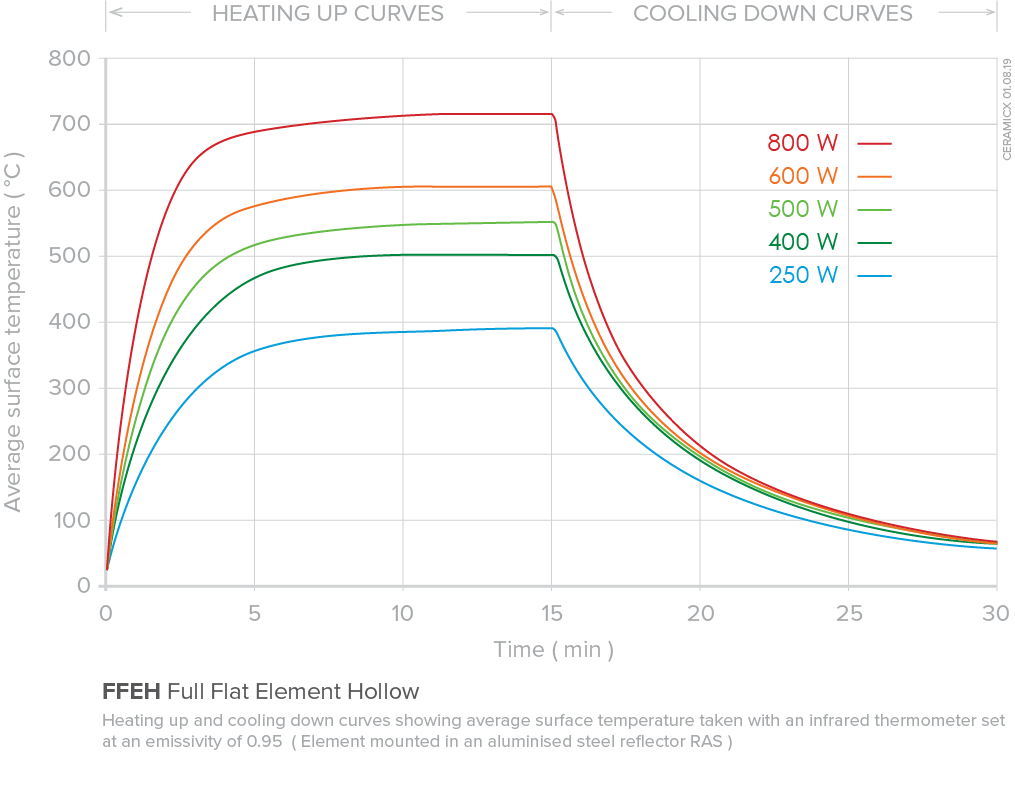

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)

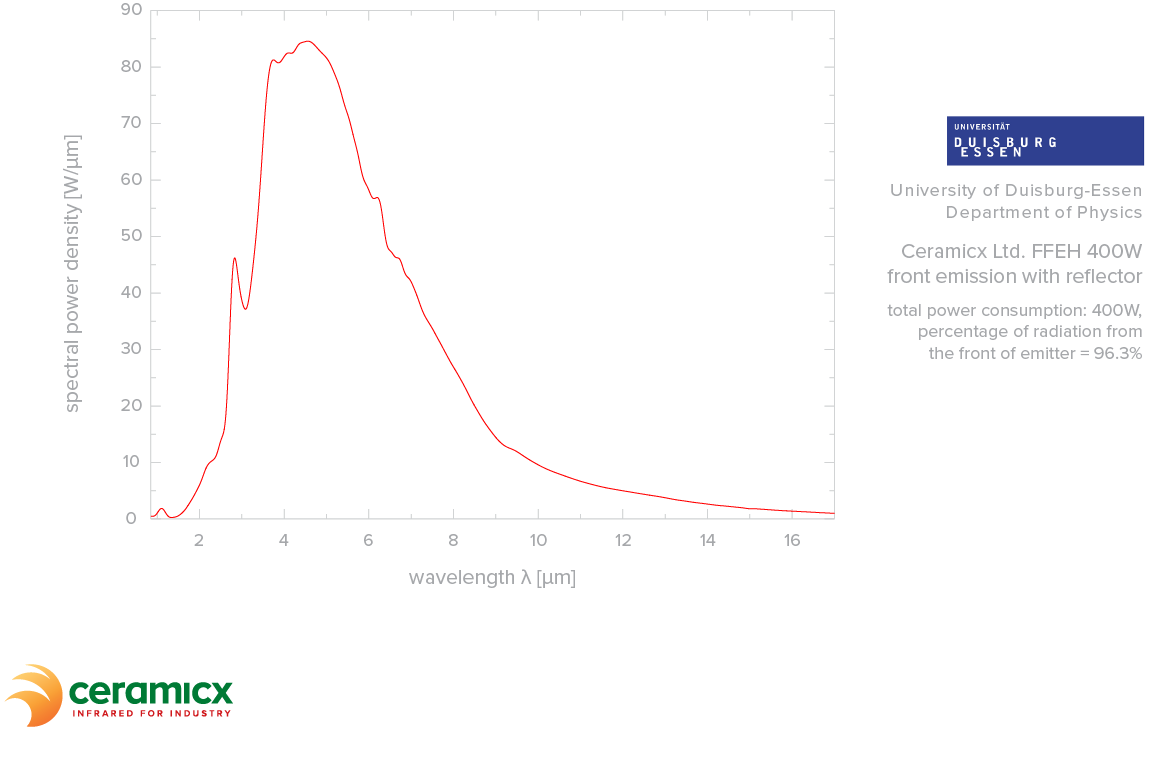

Ceramicx has been working with the University of Duisburg in Essen Germany for a number of years. The data produced has allowed Ceramicx to evolve and develop our product further as well as making more information available to help customers make a better decision when applying infrared heaters and ceramic heaters to high-tech applications.
