Quarter Flat Element
Açıklama
Available Wattage: 125-250W
Size: 60 x 60 x 26mm
Average weight: 65g
Iron-chrome aluminium resistance wire
Heater Voltage: 230V standard
Other Variations: voltages, wattages, lead length and terminations available on request
Useful wavelength range: 2-10 microns
Average Operating Life: 20,000 hrs depending on conditions
Recommended radiation distance from heater is 100 mm to 200 mm
Minimum recommended spacing between elements: 5mm
Supplied with 100mm ceramic beaded power leads
Technical information
| Available Wattage | 125 | 250 |
|---|---|---|
| Mean surface temp (°C) | 515 | 726 |
| Max power density (kW/m2) | 29.5 | 59.1 |

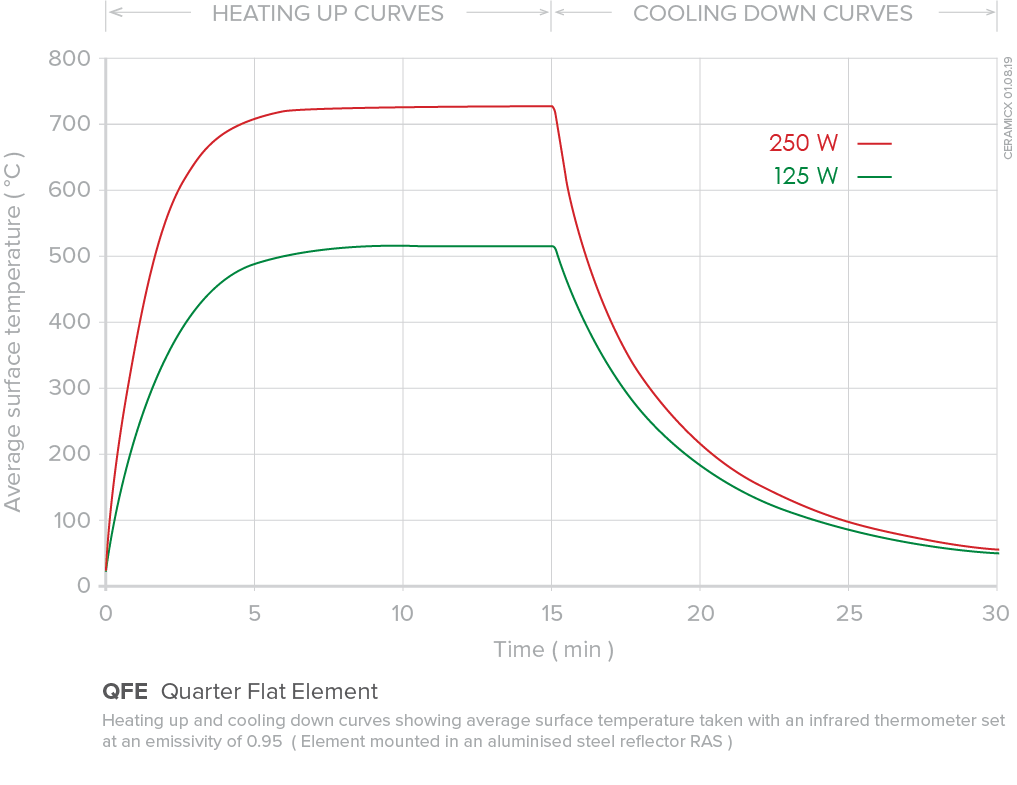

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)

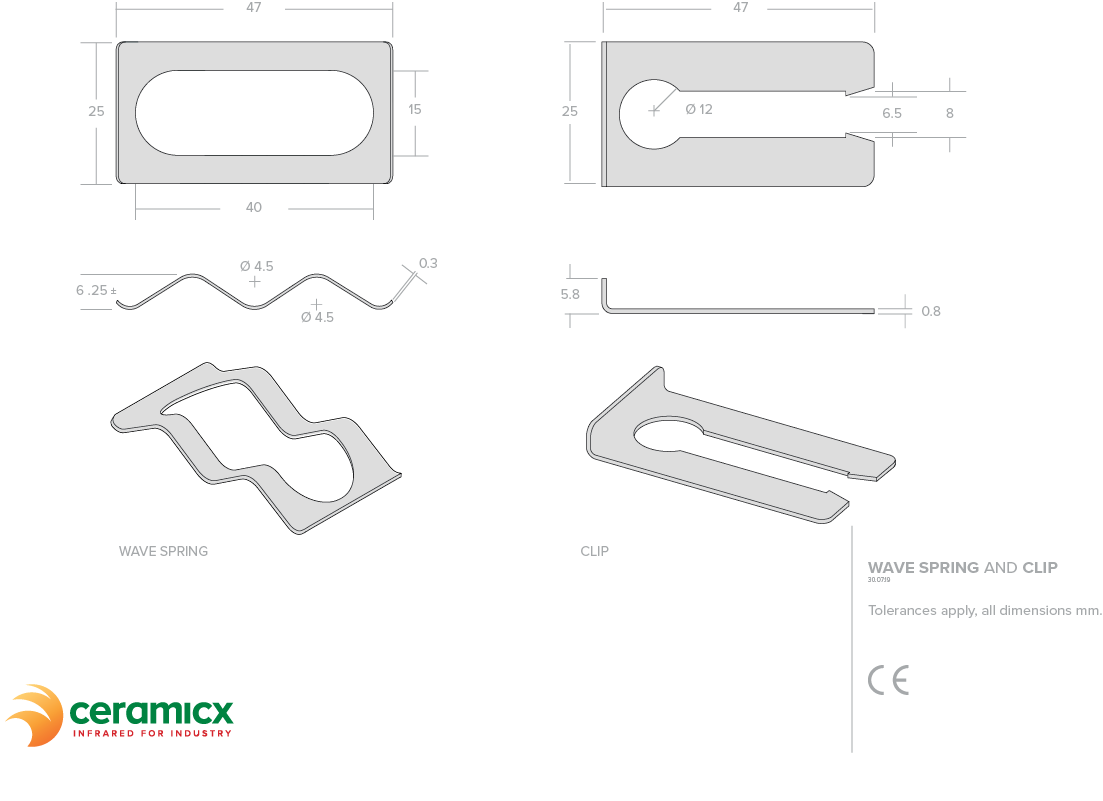

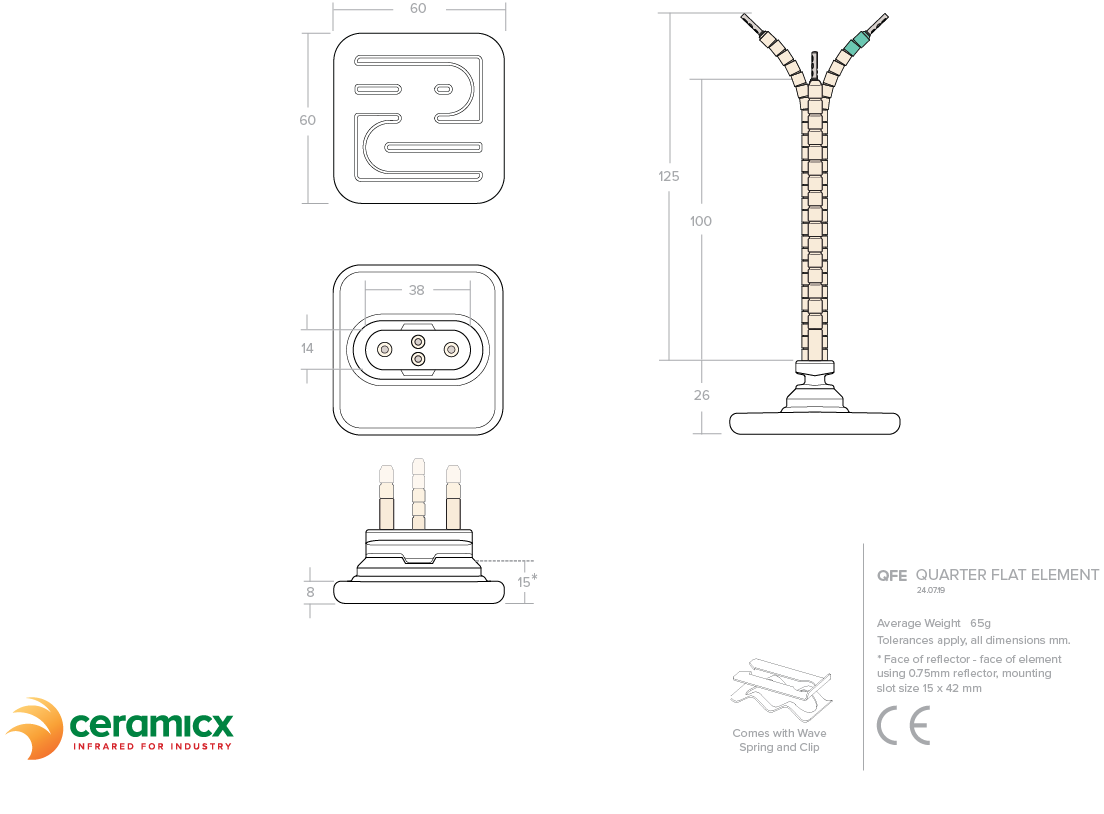

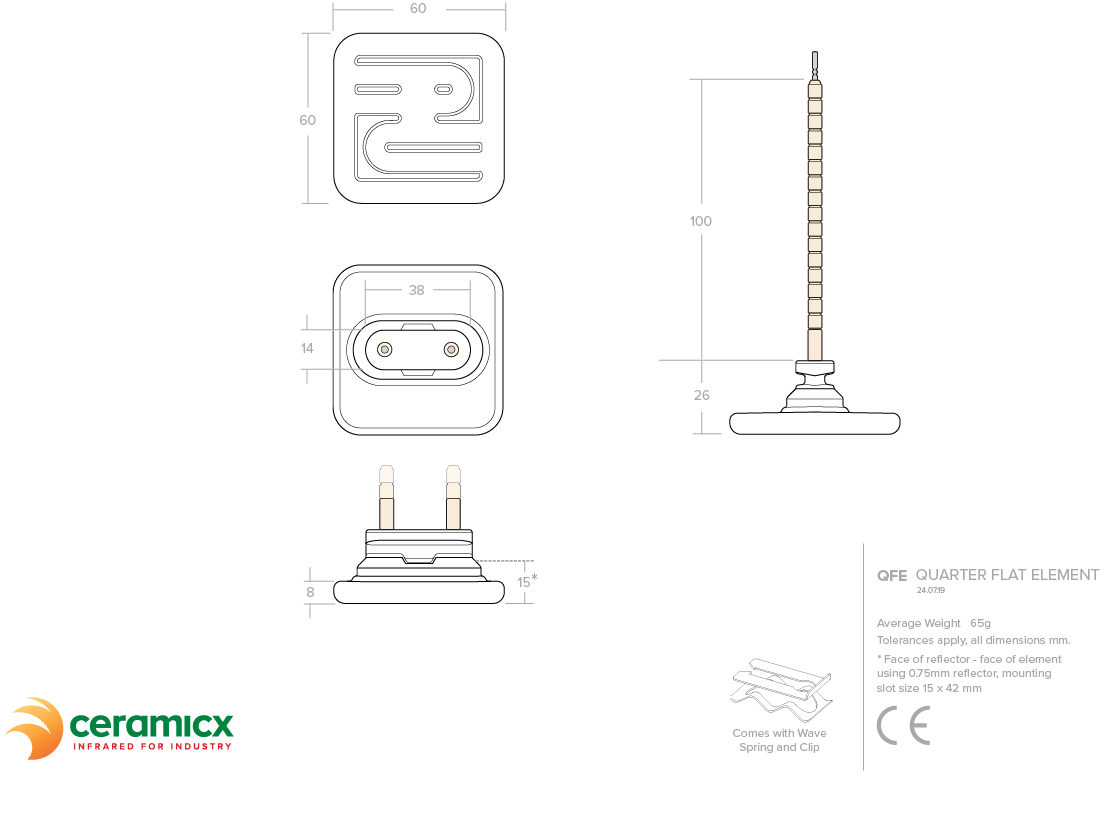

Drawings
Installation Instructions
