Quarter Quartz Element
Açıklama
Available Wattage: 150 – 250W

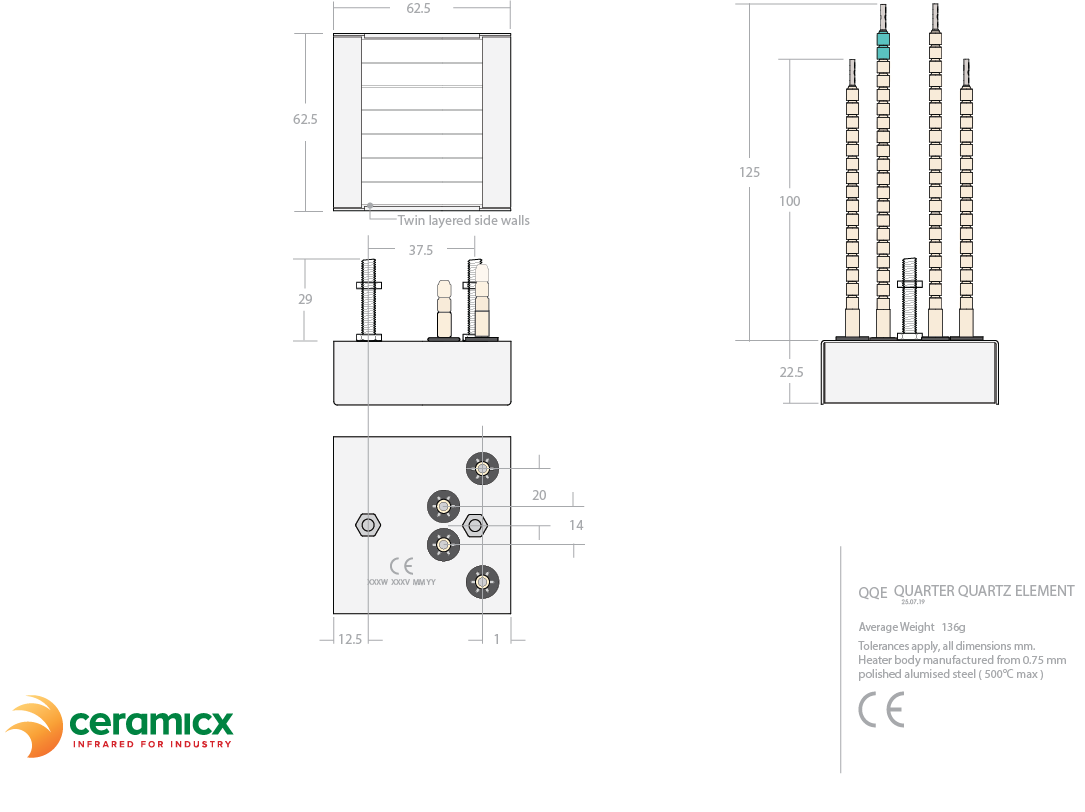

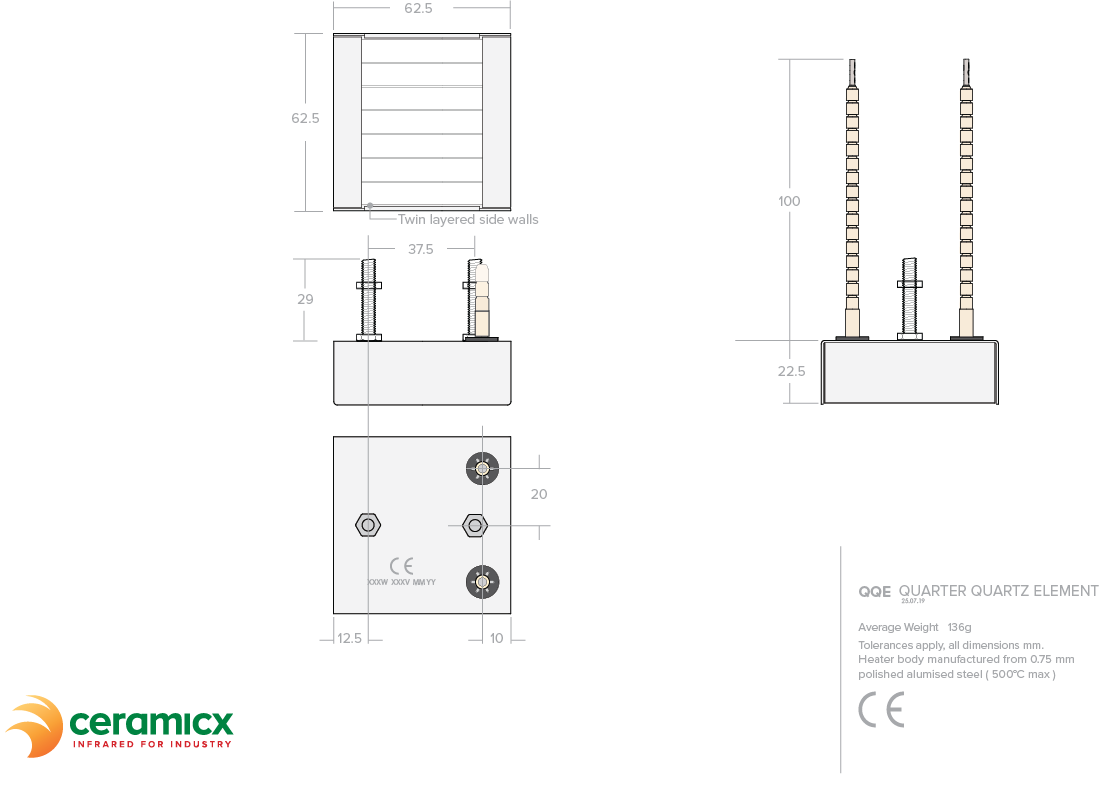

Size: 62.5 x 62.5 x 22.5mm
Useful wavelength range: 1.5 – 8 microns
Average weight: 144g
Heater Voltage: 230V standard
Other Variations: voltages, wattages, lead length and terminations available on request
Average Operating Life: 10,000 hrs depending on conditions
Iron-chrome aluminium resistance wire
Recommended radiation distance from heater is 100 mm to 200 mm
Minimum recommended spacing between elements: 5mm.
Supplied with 100mm ceramic beaded power leads
Ensure temperature of the aluminised steel body does not exceed 500°C (932°F).
Technical information
| Available Wattage | 150W | 250W |
|---|---|---|
| Mean surface temp (°C) | 642 | 772 |
| Max power density (kW/m2) | 32.9 | 54.8 |
| Radiant Watt density at 100mm W/cm2 | 1.14 |

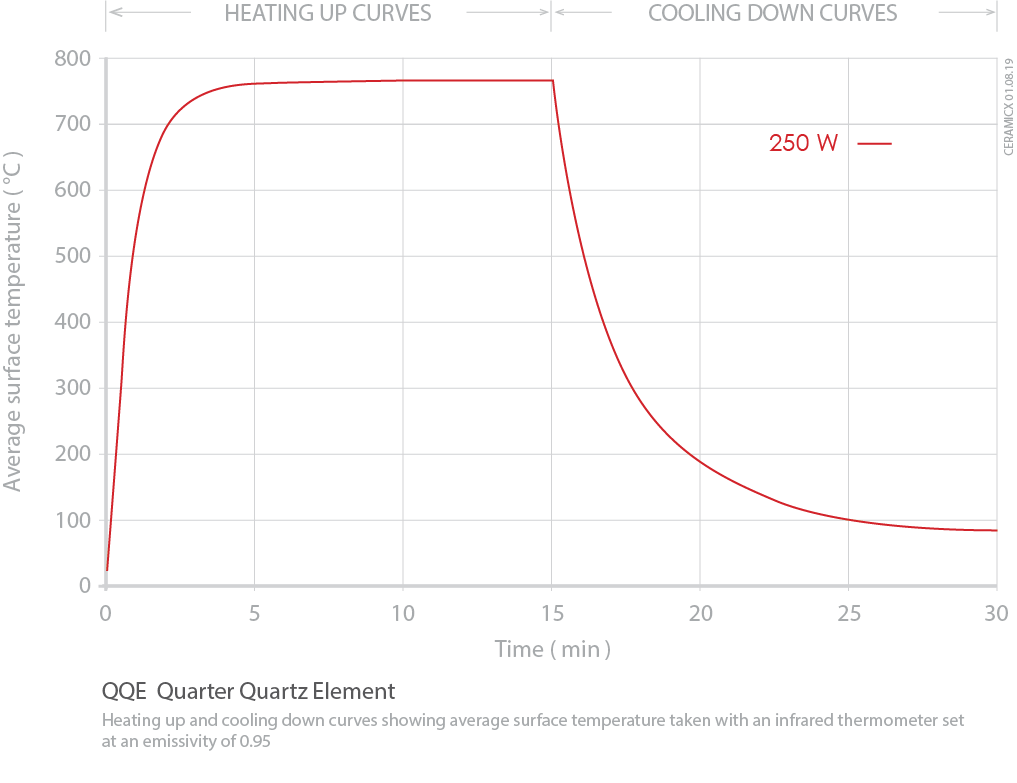

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)
Installation Instructions
