Infrared Panel Heaters

Home Ürünler Industrial Infrared Oven Components Panel Heaters Infrared Panel Heaters

Açıklama

Ceramicx infrared panel heaters are custom-built to operate primarily in the longwave range between 4 – 6 µm. Inside, the heating coils are embedded in a special ceramic fibre-board which provides insulation while adding durability and shock resistance.

The basic construction consists of a resistance coil which is located behind an emitting surface of either anodised aluminium or glass. This is then placed inside a 75mm high aluminised steel housing, normally containing 50mm of thermal insulation to reduce heat loss through the rear of the unit.

Standard options

Emitting surface

Glass-ceramic face
Excellent radiant efficiency
High percentage transmission of radiant output in medium to short wave range
Surface can be easily cleaned

Anodised aluminium face

Good radiant efficiency
Very robust
Surface sheet can be easily cleaned or replaced if damaged by molten material

Electrical terminations

Open 2P terminal block
Terminal block with cover
M6 or 1/4″ threaded stud
Type K thermocouple with fixed high-temperature socket and removable plug

Fixing studs

M5/M6/M8/0.25″ x 25mm long

Other custom options available on request. Please contact us on [email protected] for further information.

Technical information

When you place your order for a custom-built infrared panel heater, or you’d like a quotation, please supply the following information:

Overall dimensions required (length and width)
The wattage required and supply voltage
Zoning requirements (if more than 1 zone required)
Emitting surface type (see above)
Electrical termination type (see above)
With or without type K thermocouple
Fixing studs (see above)
Quantity required

Drawings

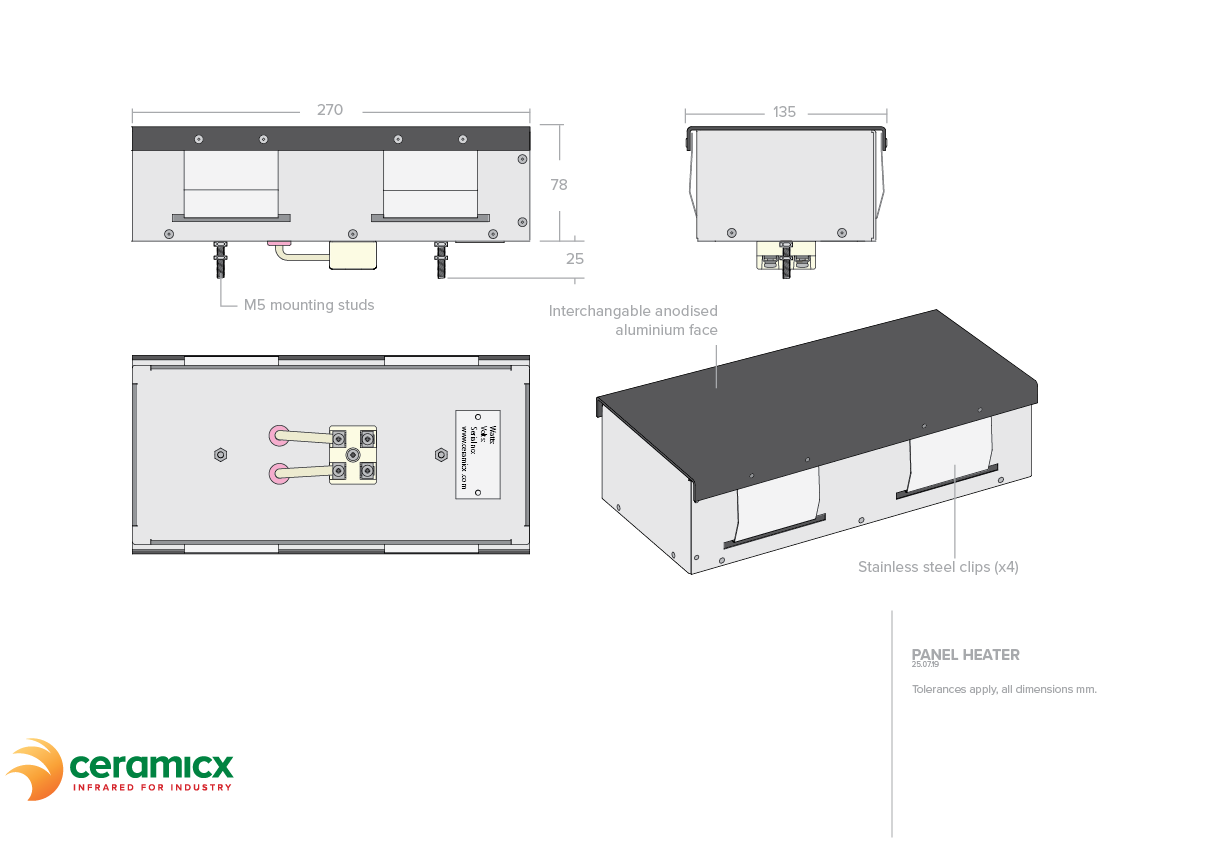

Panel Heater: Drawing

59 KB / .png
