Fast IR 500

Açıklama

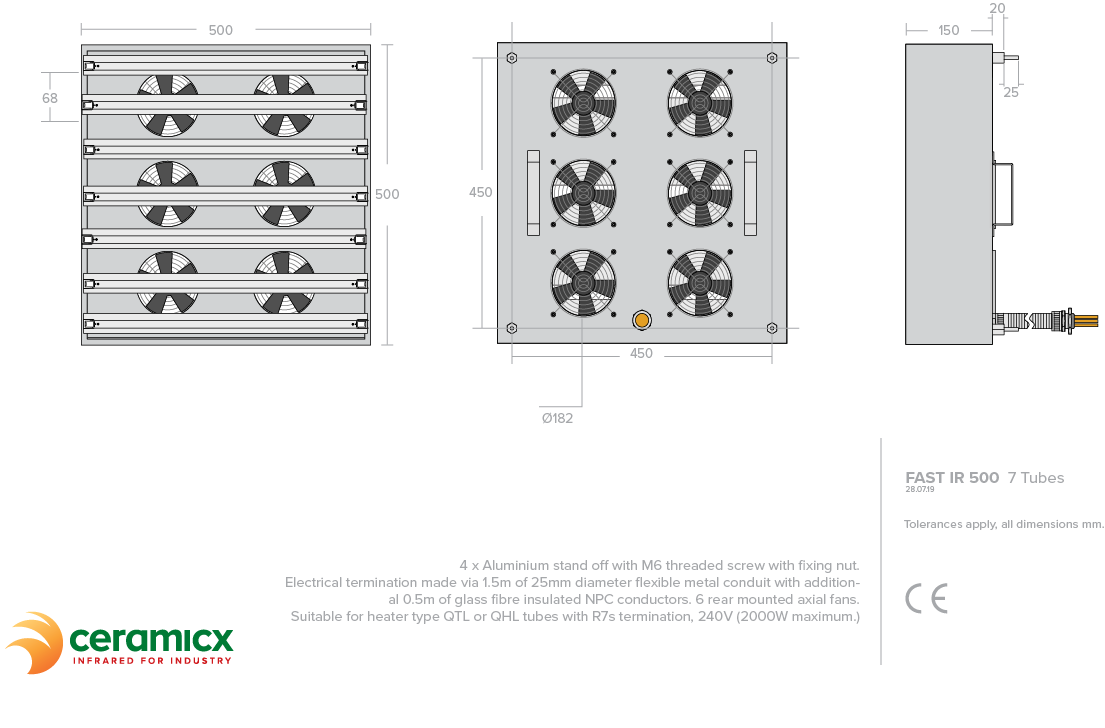

Size: 500 x 500 x 150mm

Configuration: 6 tube: 12kW; 7 tube: 14kW

Voltage: 240v

Recommended emitters: 2000 W QTL or 2000 W QHL

Tubes supplied separately.

Suitable for the fitting of 4 or 5 x 1000W Quartz tungsten/halogen heaters (QTM/QHM)

These compact robust systems form an ideal installation for quartz tungsten/halogen glass tube emitters. Optimum efficiency is achieved by highly polished aluminum steel reflection and rear mounted axial flow fans, which eliminate rear convection losses and keep the reflectors cool for better directional quality on the infrared output.

The external body which is manufactured from aluminum can be maintained at “touch safe” temperature.

Please note other configurations are available on request.
